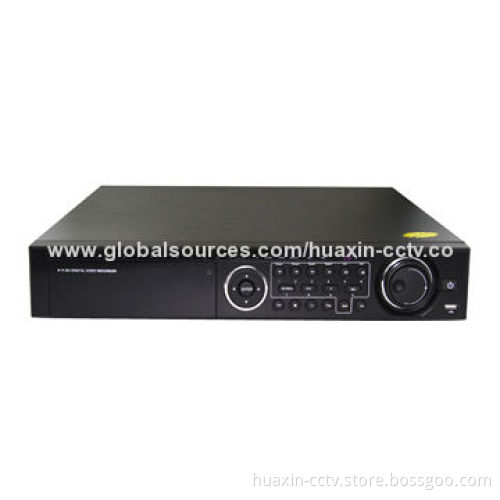

32CH H.264 standalone DVRs

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Main chip: Hi3521

OS: Embedded linux

Video/audio input

CVBS input: 32 channels

BNC port (1.0Vp-p, 75 Ohms), PAL/NTSC optional

Audio input: 4ch RCA port

Talk back: Yes

Video/audio output

CVBS output: 1channel, BNC port (1.0Vp-p, 75 Ohms)

VGA: 1channel, 1,920×1,080, 1,280×1 ,024, 1,280×720, 1,024×768, 800×600 optional

HDMI: Yes

Audio output: 1 channel, RCA port

Video/audio encode

Real time surveillance resolution: CIF

Video encode standard: H.264

Encode resolution: CIF

Highest encode ability: 32ch CIF

Video frame rates: 1~25 fps/PAL, 1~30 fps/NTSC

Encode control: fixed code rate, variable code rate optional

Video rates: 12-1024Kbps

Stream type: video audio hybrid stream video stream

Audio encode standard: G.711A

Audio rate: 64Kbps

Dual stream: Yes, CIF/QCIF optional

Video play back: 16ch CIF play back in real time

Voice talk: Two-way voice talk

Other:

Motion detection: Each channel can support 396 (22×18) area detect
Area mask: 4 area for each channel

HDD:

SATA port: 4*3T
Network port: RJ45 10/100m

External interface:

USB port:2*USB2.0
Alarm input/output port:8ch/3ch

Structure:

Dimension:440(W)x383(L)x68(H)mm
Weight:5.0Kg(without HDD)

Motion detection: Each channel can support 396 (22×18) area detect

Area mask: 4 area for each channel

SATA port: 4*3T

Network port: RJ45 10/100m

USB port:2*USB2.0

Alarm input/output port:8ch/3ch

Dimension:440(W)x383(L)x68(H)mm

Weight:5.0Kg(without HDD)
