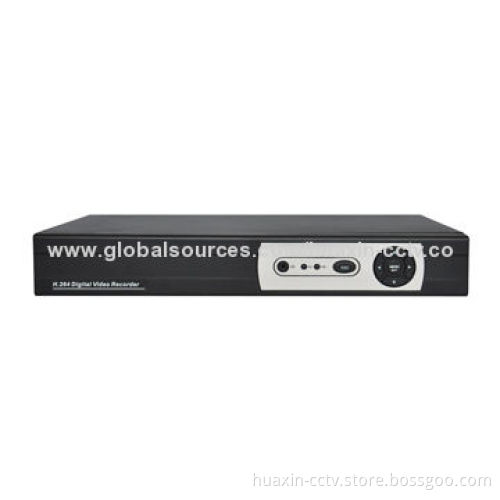

Network DVR, 16CH-HV
  • Network DVR, 16CH-HV
  • Network DVR, 16CH-HV
Network DVR, 16CH-HV
Network DVR, 16CH-HV

Network DVR, 16CH-HV

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Model: J-7116HV
    • System:
      • Main processor: technical grade embedded microprocessor, HI 3520D
      • Operating system: Embedded Linux operating system
      • System resource: multiple channel real-time recording synchronously, multiple channel real-time playback, multiple channel multiple user network operation, USB back up
    • Interface:
      • Operation interface: 16-bit real color GUI interface, supports mouse operation
      • Display screen: 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode)
    • Video:
      • Video standard: PAL（625 line, 50fps）/NTSC（525 lines, 60fps）
      • Image encode: H.264 (high profile)
      • Monitor quality: monitor: D1: VGA, HDMI: high definition （supports 1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600）
      • Playback quality: CIF
      • Encode capability: 16ch CIF real-time
      • Decode capability: 16ch CIF real-time
      • Motion detection: each channel can set 192 （16*12） detection area, can set multilevel of flexibility (for local analog channel only)
    • Audio: audio compression: G711A
    • Record and record mode: manual>alarm>motion detection>timing
    • Playback:
      • Local playback: 1-8ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)
      • Video search time, date, event, channel search
    • Storage and back up:
      • Space occupation: video: CIF 4-5G/day*channel, D1: 16-20G/day*channel, audio: 691.2M/day*channel
      • Video storage: local HDD, network
      • Back-up mode: network backup, USB portable HDD, USB imprint, SATA imprint
    • Interface:
      • Video input: 16ch CVBS/BNC (1.0Vp-p, 75Ω)
      • Video output: 1ch CVBS/BNC (1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI
      • Loop output: optional
      • Audio input: 4ch RCA (200-2800mV, 30KΩ, need interface board)
      • Audio input: 1ch RCA (200-3000mV, 5KΩ, need interface board)
      • Network port: RJ45 10m/100m self-adaptive Ethernet protocol
      • PTZ control: 1 RS485 supports multiple kinds of PTZ protocol
      • USB port: 2*USB2.0
      • HDD port: 1 SATA ports （each max to 4TB）
      • Wireless port: 3G, WiFi ( extension via USB port)
  • Other information:
    • Power: 12V/2A
    • Consumption: <15W （not including HDD)
    • Temperature: 0°C-＋55°C
    • Humidity: 10%-90%
    • Atmosphere pressure: 86kpa-106kpa
    • Dimensions: L233*W300*H45mm
    • Weight: 1.2kg
  • System:
    • Main processor: technical grade embedded microprocessor, HI 3520D
    • Operating system: Embedded Linux operating system
    • System resource: multiple channel real-time recording synchronously, multiple channel real-time playback, multiple channel multiple user network operation, USB back up
  • Interface:
    • Operation interface: 16-bit real color GUI interface, supports mouse operation
    • Display screen: 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode)
  • Video:
    • Video standard: PAL（625 line, 50fps）/NTSC（525 lines, 60fps）
    • Image encode: H.264 (high profile)
    • Monitor quality: monitor: D1: VGA, HDMI: high definition （supports 1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600）
    • Playback quality: CIF
    • Encode capability: 16ch CIF real-time
    • Decode capability: 16ch CIF real-time
    • Motion detection: each channel can set 192 （16*12） detection area, can set multilevel of flexibility (for local analog channel only)
  • Audio: audio compression: G711A
  • Record and record mode: manual>alarm>motion detection>timing
  • Playback:
    • Local playback: 1-8ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)
    • Video search time, date, event, channel search
  • Storage and back up:
    • Space occupation: video: CIF 4-5G/day*channel, D1: 16-20G/day*channel, audio: 691.2M/day*channel
    • Video storage: local HDD, network
    • Back-up mode: network backup, USB portable HDD, USB imprint, SATA imprint
  • Interface:
    • Video input: 16ch CVBS/BNC (1.0Vp-p, 75Ω)
    • Video output: 1ch CVBS/BNC (1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI
    • Loop output: optional
    • Audio input: 4ch RCA (200-2800mV, 30KΩ, need interface board)
    • Audio input: 1ch RCA (200-3000mV, 5KΩ, need interface board)
    • Network port: RJ45 10m/100m self-adaptive Ethernet protocol
    • PTZ control: 1 RS485 supports multiple kinds of PTZ protocol
    • USB port: 2*USB2.0
    • HDD port: 1 SATA ports （each max to 4TB）
    • Wireless port: 3G, WiFi ( extension via USB port)
  • Main processor: technical grade embedded microprocessor, HI 3520D
  • Operating system: Embedded Linux operating system
  • System resource: multiple channel real-time recording synchronously, multiple channel real-time playback, multiple channel multiple user network operation, USB back up
  • Operation interface: 16-bit real color GUI interface, supports mouse operation
  • Display screen: 1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode)
  • Video standard: PAL（625 line, 50fps）/NTSC（525 lines, 60fps）
  • Image encode: H.264 (high profile)
  • Monitor quality: monitor: D1: VGA, HDMI: high definition （supports 1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600）
  • Playback quality: CIF
  • Encode capability: 16ch CIF real-time
  • Decode capability: 16ch CIF real-time
  • Motion detection: each channel can set 192 （16*12） detection area, can set multilevel of flexibility (for local analog channel only)
  • Local playback: 1-8ch playback synchronously (take local analog input for example, other is depended on the selected channel mode)
  • Video search time, date, event, channel search
  • Space occupation: video: CIF 4-5G/day*channel, D1: 16-20G/day*channel, audio: 691.2M/day*channel
  • Video storage: local HDD, network
  • Back-up mode: network backup, USB portable HDD, USB imprint, SATA imprint
  • Video input: 16ch CVBS/BNC (1.0Vp-p, 75Ω)
  • Video output: 1ch CVBS/BNC (1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI
  • Loop output: optional
  • Audio input: 4ch RCA (200-2800mV, 30KΩ, need interface board)
  • Audio input: 1ch RCA (200-3000mV, 5KΩ, need interface board)
  • Network port: RJ45 10m/100m self-adaptive Ethernet protocol
  • PTZ control: 1 RS485 supports multiple kinds of PTZ protocol
  • USB port: 2*USB2.0
  • HDD port: 1 SATA ports （each max to 4TB）
  • Wireless port: 3G, WiFi ( extension via USB port)
  • Power: 12V/2A
  • Consumption: <15W （not including HDD)
  • Temperature: 0°C-＋55°C
  • Humidity: 10%-90%
  • Atmosphere pressure: 86kpa-106kpa
  • Dimensions: L233*W300*H45mm
  • Weight: 1.2kg
