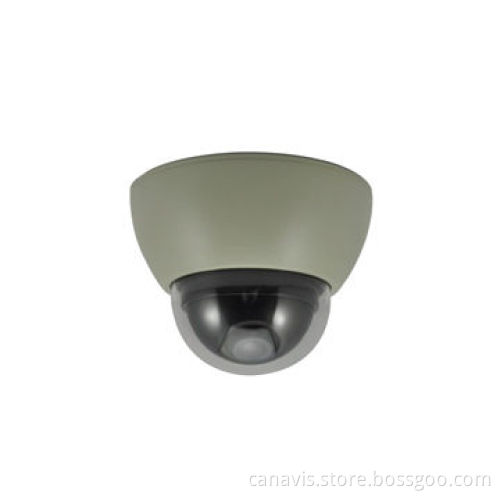

Mini Camera, 1/3-inch Sony Super HAD CCD, 420/520TVL Resolution, 12V DC Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Image sensor: 1/3-inch Sony super HAD CCD II

Horizontal resolutions: 420/520/600/650TVL

Effective resolution (H x V):

PAL: 500 x 582/29 pixels
NTS: 510 x 492/25 pixels
PAL: 752 x 582/44 pixels
NTSC: 768 x 494/38 pixels
Shutter speed: 1/50 (1/60) to 1/100,000 seconds
S/N ratio: >48dB (AGC off, black and white)
Lens: 3.6/6, 3.6/6mm (optional)
Signal system: PAL/NTSC
Scanning frequencies:
- PAL: 15,625/50Hz
- NTSC: 15,734/59.94Hz
Scanning system: 2:1 interlace
Minimum illumination: 0.1 Lux (color), 0.01 Lux (black and white) and 0.00 Lux (IR on)
Synchronization: internal
Video output: 1.0Vp-p composite (75^©)
Wavelength: 850nm
White balance: auto
Backlight compensation: auto
Auto-gain: auto
Day/night: auto
OSD menu: without OSD
Working temperatures: -10 to 50°C
Storage temperatures:-20 to 60°C
Power supply: 12V DC
Power consumption: <4.9 or <5.1W
