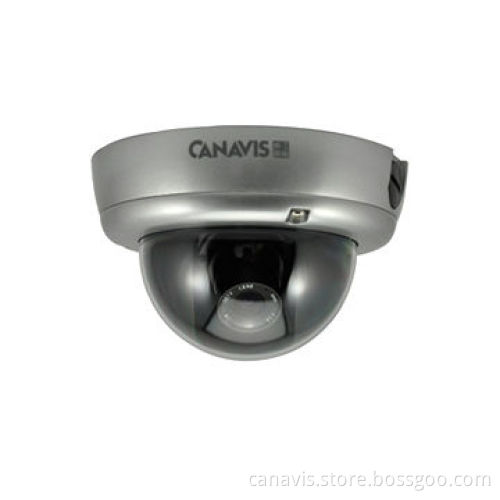

Indoor Dome Camera with Sony 420, 520, 600, 650TVL Horizontal Resolution, Auto White Balance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Series: N, Q, G, E

Module: CA-361N, CA-361Q, CA-361G, CA-361E

Image sensor: 1/3-inch Sony super HAD CCD a, 1/3-inch Sony EX-view HAD CCD II

Horizontal resolution: 420, 520, 600, 650TVL

Effective pixels:

Shutter speed: 1/50 (1/60)-1/100,000 seconds

S/N ratio: >48dB (AGC-off, black and white), >52dB(AGC-off, black and white)

Lens: fixed: 6mm, 3.6/6/8mm (optional)

Signal system: 2:1 interlace

Minimum illumination: 0.1 Lux (color), 0.01 Lux (black and white), 0.00 Lux (IR-on)

Scanning system: 2:1 interlace

Video output: 1.0Vp-p, composite (75^©)

Synchronization: 850nm

White balance: auto

Backlight compensation: auto

Auto-gain: auto

Day/night: auto

Working temperatures: -10-50ºC

OSD menu: without OSD

Power supply: 12V DC

Power consumption: <4.9W

Size: ¦145 x 92mm

Weight: 546g

PAL (H x V): 500 x 582P/290K

NTSC (H x V): 510 x 492P/250K

PAL (H x V): 752 x 582P/440K

NTSC (H x V): 768 x 494P/380K

PAL (H x V): 752 x 582p/440K

NTSC (H x V): 768 x 494P/380K

PAL (H x V): 976 x 582P/570K

NTSC (H x V): 976 x 494P/480K
