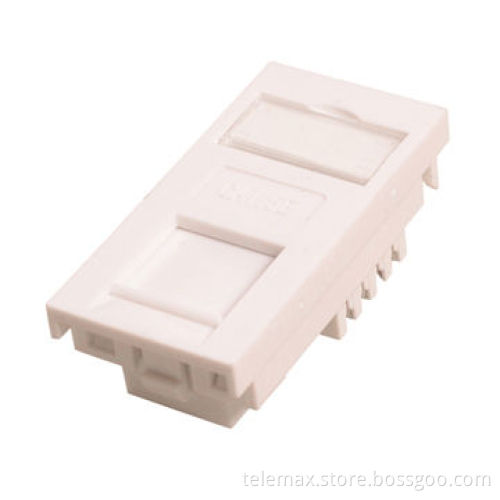

Cat 5e keystone jack UK Style

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

TM04CAT5EJKEU+UTP180

Description: Cat 6 keystone jack 180 degrees 3U'' Krone IDC

Main descriptions of the product:

Keystone jack, Cat.6, UTP type, fit for connecting application of communication ports in working area
A compact and ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack, which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips
According to the standard of ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible
Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables
Fitting for the Cat.6 general cable distribution system. Compatible for Cat.6 systems

Technique characteristics：

Material of plastic parts: PC UL94V-0
Material of the FCC connectors 8-pin of the RJ45 jack: Phosphor bronze with golden plated 3, 6, 15, 30, 50U at option. Inserting duration: 750 times
Material of the IDC clips: tinned phosphor bronze pins. Fit for 22/23/24AWG cables. Punching duration: 250 times
Punching tools: too less punching type assembles the cables with the punching cover
Testing condition of transmitting capability: 250MHz

Keystone jack, Cat.6, UTP type, fit for connecting application of communication ports in working area

A compact and ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack, which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips

According to the standard of ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA 568-B.2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible

Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables

Fitting for the Cat.6 general cable distribution system. Compatible for Cat.6 systems

Material of plastic parts: PC UL94V-0

Material of the FCC connectors 8-pin of the RJ45 jack: Phosphor bronze with golden plated 3, 6, 15, 30, 50U at option. Inserting duration: 750 times

Material of the IDC clips: tinned phosphor bronze pins. Fit for 22/23/24AWG cables. Punching duration: 250 times

Punching tools: too less punching type assembles the cables with the punching cover

Testing condition of transmitting capability: 250MHz
