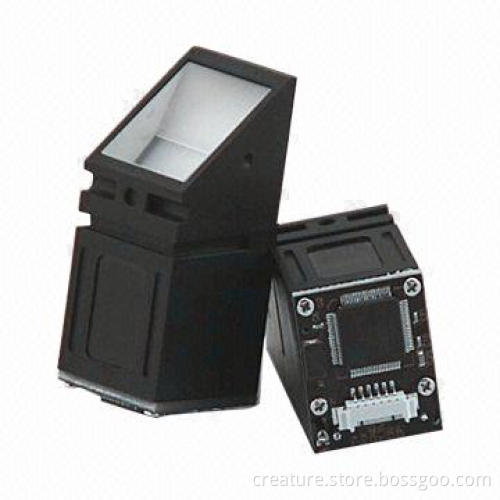

CFM550 USB Fingerprint Readers with 500dpi Image Resolution, 0 to 50°C Working Temperatures

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Image resolution: 500dpi
CMOS: GC0307
Light source: backlight (green)
Window size: 18 x 21mm
Valid collection area: 18 x 15mm
Power supply: 3.3 or 5V
Electric current: 25mAh (dynamic)
Fingerprint image response time: ≤0.3 seconds
Working temperature range: 0 to 50°C
Storage temperature range: 0 to 85°C
Working humidity: <90% RH
Interface: environment FPC socket SMT-1.0-16 (continued on, lockable)
Product size (L x W x H): 50.9 x 18 x 25mm
Simple installation: compact integrated module
Image collection chip is integrated on the scanner
Interface: standard UART protocol (RS232, TTL level), selectable baud rate, USB client
Adjustable security level
