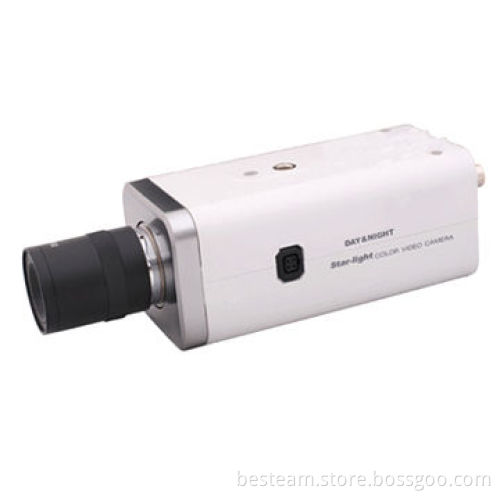

Pixim WDR Box Camera, 120dB (Maximum)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Super wide dynamic range 120dB

High resolution up to 690 HTVL effective

OSD menu

12V DC duplicate power design. Sensor 1/3" DPS sensor

Menu operation video format: PAL/NTSC

Resolution: 690 HTVL effective*

Minimum illumination 0.1 lux min. illumination (f/1.2, 50 IRE, 30 fps, CMY)

S/N ratio: up to 50dB max (Y signal, AGC off)

Ess modes: 1-32 x

AGC programmable up to 50dB

WDR 120dB (maximum)

Iris control electronic iris/auto iris lens (DC drive)

Extended slow shutter 2/4/8/16/32x

Noise reduction: 3D motion adaptive

Digital zoom: 8x

White balance ATW, AWB

Low light mode: low speed shutter, AGC, sense up B/W low speed, shutter image

Day/night: true day/night, soft day/night (B/W)

Sync mode internal/line lock

Power voltage: 12V DC/24V AC

Current ≤150mA

Video output: 1.0Vp-p/75 Ω composite

Lens mount: CS

Operating temperatures: -10-50℃

Storage temperatures: -20-60℃

Dimension: 60*52*127mm

Weight: 400g
