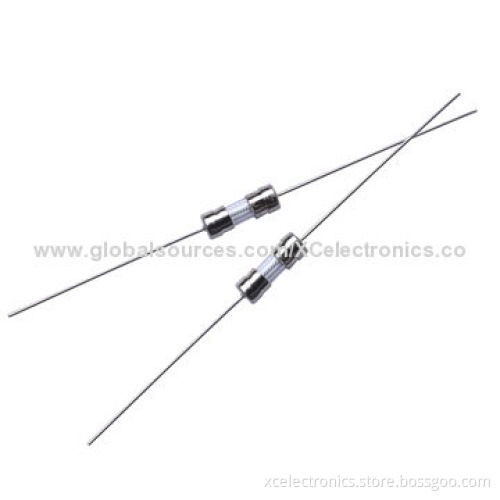

Glass Tube Fuses, Time Delay, 3.6x10mm, CQC, VDE, cULus, PSE, KC, K Marks, Comply with RoHS, REACH

Get Latest Price

Payment Type:: CIF, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	CIF, T/T

Product Description

Fuse 3T, 3.6 x 10mm, 250mA-10A, 125V, cULus, PSE certified, 250mA-6.3A, 250V, cURus, VDE, CQC, KC certified, time delay, comply with RoHS and REACH marks

Materials:

Cap: nickel-plated copper
Tube: glass
Lead wire: stannum plated copper
Fuse wire: alloy

Breaking capacity: 35A or whichever is greater

Functions:

150%: >1 hour
210%: ≥1, ≤120 seconds
275%: ≥400ms, ≤10 seconds
400%: ≥150ms, ≤3 seconds
1,000%: ≥20, ≤150ms

Cap: nickel-plated copper

Tube: glass

Lead wire: stannum plated copper

Fuse wire: alloy

150%: >1 hour

210%: ≥1, ≤120 seconds

275%: ≥400ms, ≤10 seconds

400%: ≥150ms, ≤3 seconds

1,000%: ≥20, ≤150ms
