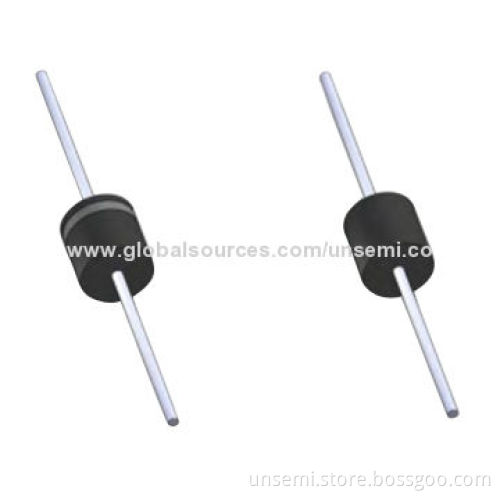

TVS Diode, Transient Voltage Suppressor R6/P600

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Description:

5KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

Glass passivated chip junction in P600 package
Low leakage
Uni and bidirectional unit
Good clamping capability
5,000W Peak power capability at 10 × 1000µs waveform repetition rate (duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0V to VBR min
Typical IR less than 5μA above 12V
High temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
Plastic package has Underwriters Laboratory Flammability 94V-0
Matte tin lead–free plated
Halogen-free and compliant with RoHS Directive
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits
Used in telecom, computer, industrial and consumer electronics applications

5KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Glass passivated chip junction in P600 package

Low leakage

Uni and bidirectional unit

Good clamping capability

5,000W Peak power capability at 10 × 1000µs waveform repetition rate (duty cycle):0.01%

Fast response time: typically less than 1.0ps from 0V to VBR min

Typical IR less than 5μA above 12V

High temperature soldering: 260°C/40 seconds at terminals

Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT

Plastic package has Underwriters Laboratory Flammability 94V-0

Matte tin lead–free plated

Halogen-free and compliant with RoHS Directive
