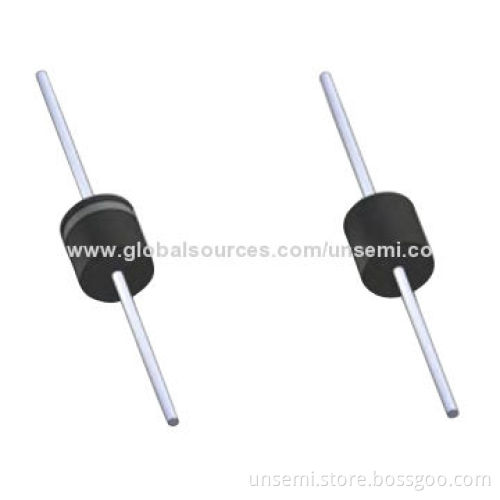

TVS Diode, Transient Voltage Suppressor, R6/P600

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Descriptions:

The 15KP to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

Glass passivated chip junction in P600 package
Low leakage
Uni- and bi-directional unit
Excellent clamping capability
15,000W peak capability at 10 x 1,000µs waveform repetition rate (duty cycle): 0.01%
Fast response time: typically less than 1.0ps from 0V to VBR min
Typical IR less than 2μA above 40V
High temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°Cx ΔT
Plastic package has underwriters laboratory flammability 94V-0
Matte tin lead-free plated
Halogen-free
Compliant with RoHS Directive
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

Applications: TVS devices are ideal for the protection of I/O interfaces, VCC bus and other circuits used in telecom, computer, industrial and consumer electronic applications
