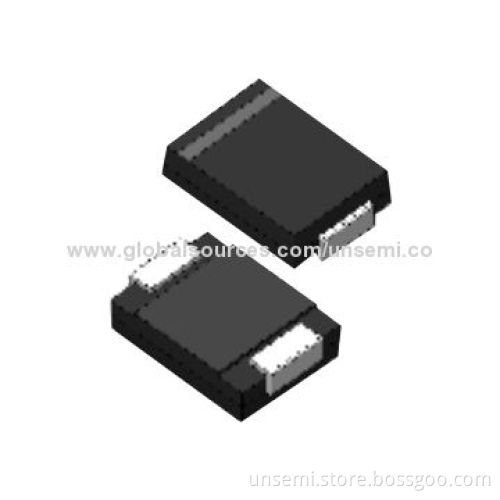

TVS (Transient Voltage Suppressor) Diode, DO-214AA/SMB

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Descriptions:

The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

For surface mounted applications in order to optimize board space
Low leakage
Uni and bidirectional unit
Glass passivated junction
Low inductance
Good clamping capability
600W peak power capability at 10 x 1,000µs waveform repetition rate (duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to VBR min
Typical IR less than 5μA above 12V.
High temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% x VBR at 25°Cx ΔT
Plastic package has Underwriters Laboratory Flammability 94V-0
Matte tin lead–free Plated
Halogen free and RoHS compliant
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, computer, industrial and consumer electronic applications

The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

For surface mounted applications in order to optimize board space

Low leakage

Uni and bidirectional unit

Glass passivated junction

Low inductance

Good clamping capability

600W peak power capability at 10 x 1,000µs waveform repetition rate (duty cycle):0.01%

Fast response time: typically less than 1.0ps from 0 Volts to VBR min

Typical IR less than 5μA above 12V.

High temperature soldering: 260°C/40 seconds at terminals

Typical maximum temperature coefficient ΔVBR = 0.1% x VBR at 25°Cx ΔT

Plastic package has Underwriters Laboratory Flammability 94V-0

Matte tin lead–free Plated

Halogen free and RoHS compliant

Typical failure mode is short from over-specified voltage or current

Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

IEC-61000-4-2 ESD 15kV(Air), 8kV (contact)

ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, computer, industrial and consumer electronic applications
