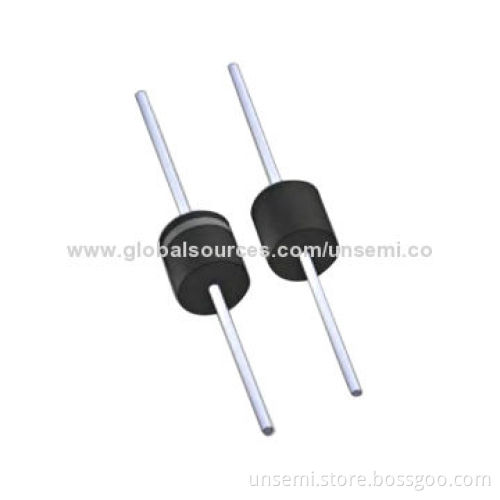

TVS Diode, R6/P600 Transient Voltage SuppressorNew

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Description:

The 30KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

Glass passivated chip junction in P600 package
Low leakage
Uni and bidirectional unit
Good clamping capability
30,000W peak power capability at 10 x 1000µs waveform repetition rate (duty cycle): 0.01%
Fast response time: typically less than 1.0ps from 0 Volts to VBR min
Typical IR less than 2μA above 73V
High temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
Plastic package has underwriters laboratory flammability 94V-0
Matte tin lead–free plating
Halogen-free and RoHS standard
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications

The 30KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Glass passivated chip junction in P600 package

Low leakage

Uni and bidirectional unit

Good clamping capability

30,000W peak power capability at 10 x 1000µs waveform repetition rate (duty cycle): 0.01%

Fast response time: typically less than 1.0ps from 0 Volts to VBR min

Typical IR less than 2μA above 73V

High temperature soldering: 260°C/40 seconds at terminals

Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT

Plastic package has underwriters laboratory flammability 94V-0

Matte tin lead–free plating

Halogen-free and RoHS standard

Typical failure mode is short from over-specified voltage or current

Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
