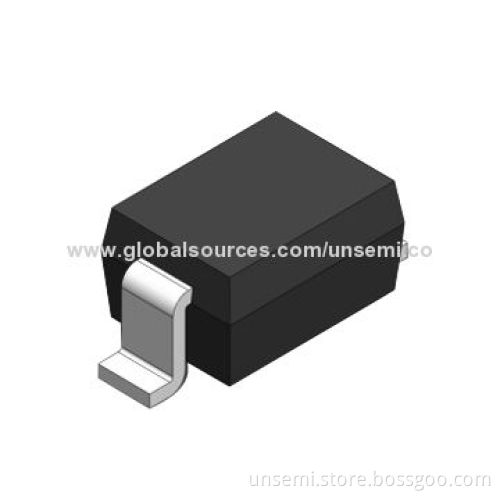

ESD Suppressors, SOD-323, Used for Cellular Phones

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Designed to protect voltage sensitive components from ESD and transient voltage events
Nice clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium
Because of its small size, ultra-low capacitance values, very suitable for signal port and board space speed transmission in very small places such as Ethernet, mobile phones, MP3 player, digital cameras and other portable

Features:

200W peak pulse power/line (tp = 8/20μs)
Protects one bidirectional I/O line
Low clamping voltage
Working voltage: 3.3, 5 and 8V
Low leakage current:
- IEC 61000-4-2 (ESD): ±15 (air) and ±8kV (contact)
- IEC 61000-4-4 (EFT): 40A (5/50μs)

Applications:

Ethernet 10/100/1000Base-T
Cellular phones
I2C bus protection
Parallel and serial port protection
Personal digital assistants (PDA's)
Microcontroller input protection
ISDN S/T interface
WAN/LAN equipment

Mechanical characteristics:

Molding compound flammability rating: UL 94V-0
Weight: 5.0 milligrams (approximately)

Packing:

JEDEC SOD-323
Quantity: 3000 pieces/reel
Reel size: 7-inch

Lead finish: lead-free
