ESD Suppressors, Electrostatic Discharge Protection, SOD-523, Used for Set-top Box

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

The ESDXXV52D-A is designed to protect voltage sensitive components from ESD and transient voltage events
Excellent clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium

Features:

120 watts peak pulse power per line (tp=8/20μs)
Protects one I/O line
Low clamping voltage
Working voltages: 3.3, 5, 8, 12, 15 and 24V
Low leakage current
IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)

Applications:

Cellular handsets and accessories
Portable electronics
Industrial controls
Set-top box
Instrumentation
Servers, notebook and desktop PC
Display ports

Mechanical characteristics:

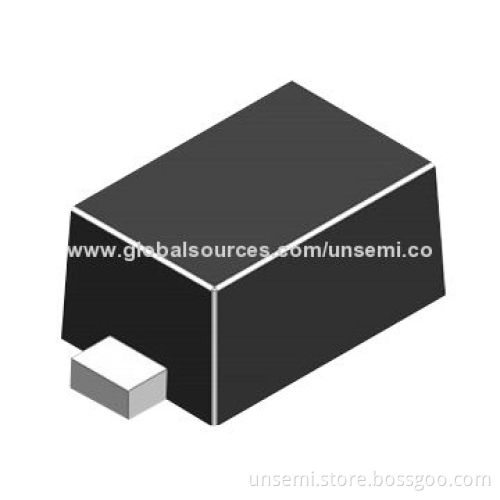

SOD-523 package
Molding compound flammability rating: UL 94V-0
Weight: 2 milligrams (approximate)
Quantity per reel: 3,000pcs
Reel size: 7 inches
Lead finish: lead-free
