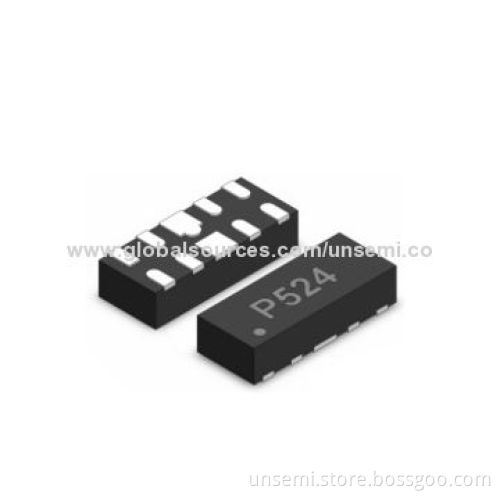

ESD Diode, RoHS Directive-compliant

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Designed to protect voltage sensitive components from ESD and transient voltage events
Nice clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium

Features:

Applications:

Mechanical characteristics:

Packing:

Lead finish: lead-free

Designed to protect voltage sensitive components from ESD and transient voltage events

Nice clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium

150W peak pulse power/line (tp = 8/20μs)

Protects two or four I/O lines

Low capacitance: 0.3pF typical (I/O to I/O)

Low operating voltage: 5V

RoHS Directive-compliant

IEC 61000-4-2 (ESD): ±15 (air) and ±8kV (contact)

IEC 61000-4-4 (EFT): 40A (5/50μs)

IEC 61000-4-5 (lightning): 5A (8/20μs)

High-definition multimedia interface (HDMI)

Digital visual interface (DVI)

Unified display interface (UDI)

MDDI ports

PCI express

Serial ATA

Molding compound flammability rating: UL 94V-0

Weight 15.0 milligrams (approximately)

DSON-10

Quantity: 3000 pieces/reel

Reel size: 7-inch
