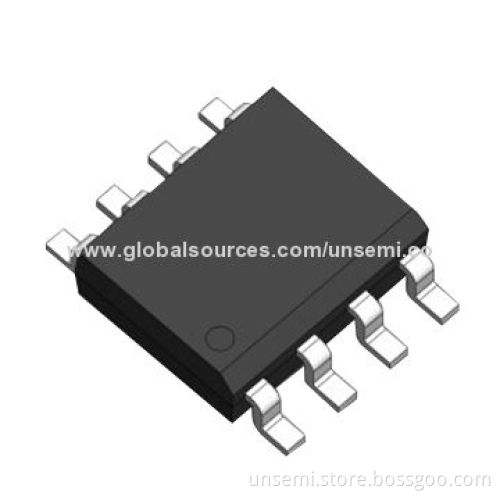

ESD Diode, Electrostatic Discharge Protection, SO-08, Used for WAN/LAN Equipment
  • ESD Diode, Electrostatic Discharge Protection, SO-08, Used for WAN/LAN Equipment
ESD Diode, Electrostatic Discharge Protection, SO-08, Used for WAN/LAN Equipment

ESD Diode, Electrostatic Discharge Protection, SO-08, Used for WAN/LAN Equipment

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Descriptions:
    • The SLVU2.8-8 is in an SO-08 package and may be used to protect two high-speed line pairs
    • The “flow-thru” design minimizes trace inductance and reduces voltage overshoot associated with ESD events
    • The low clamping voltage of the SLVU 2.8-8 minimizes the stress on the protected IC
  • Features:
    • 600 watts peak pulse power per line (tp=8/20μs)
    • Protects eight lines (four line pairs)
    • Low capacitance
    • Compliant with RoHS Directive
    • IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
    • IEC61000-4-4 (EFT) 40A (5/50ηs)
    • IEC61000-4-5 (lightning) 24A (8/20μs)
  • Applications:
    • 10/100/1000 Ethernet
    • WAN/LAN equipment
    • Test and measurement equipment
    • Switching systems
    • Instrumentation
    • DSLAMs
    • Base stations
    • Analog inputs
  • Mechanical characteristics:
    • JEDEC SO-08 package
    • Molding compound flammability rating: UL 94V-0
    • Weight: 70 milligrams (approximate)
    • Quantity per reel: 500pcs
    • Reel size: 7 inches
    • Lead finish: lead-free
  • The SLVU2.8-8 is in an SO-08 package and may be used to protect two high-speed line pairs
  • The “flow-thru” design minimizes trace inductance and reduces voltage overshoot associated with ESD events
  • The low clamping voltage of the SLVU 2.8-8 minimizes the stress on the protected IC
  • 600 watts peak pulse power per line (tp=8/20μs)
  • Protects eight lines (four line pairs)
  • Low capacitance
  • Compliant with RoHS Directive
  • IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
  • IEC61000-4-4 (EFT) 40A (5/50ηs)
  • IEC61000-4-5 (lightning) 24A (8/20μs)
  • 10/100/1000 Ethernet
  • WAN/LAN equipment
  • Test and measurement equipment
  • Switching systems
  • Instrumentation
  • DSLAMs
  • Base stations
  • Analog inputs
  • JEDEC SO-08 package
  • Molding compound flammability rating: UL 94V-0
  • Weight: 70 milligrams (approximate)
  • Quantity per reel: 500pcs
  • Reel size: 7 inches
  • Lead finish: lead-free
