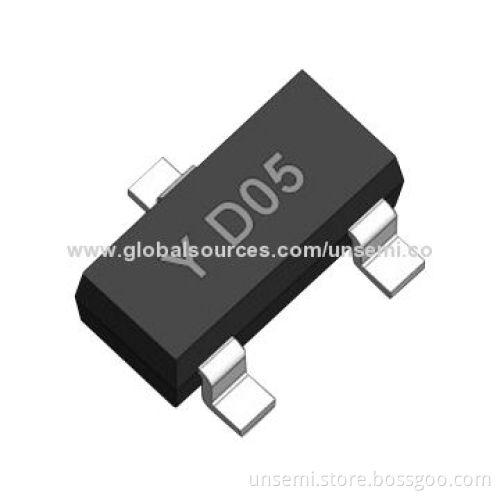

ESD array,Electrostatic Discharge Protection, SOT-23

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

ESD05V23T-2L is designed to protect voltage sensitive components from ESD and transient voltage events
Good clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium

Features:

Applications:

Mechanical characteristics:

ESD05V23T-2L is designed to protect voltage sensitive components from ESD and transient voltage events

Good clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium

100W peak pulse power per line (tp=8/20μs)

Protects two I/O lines

Low clamping voltage

Working voltage: 5V

Low leakage current

IEC61000-4-2 (ESD): ±15kV (air) and ±8kV (contact)

IEC61000-4-4 (EFT): 40A (5/50ηs)

IEC61000-4-5 (lightning): 5A (8/20μs)

Microprocessor based equipment

Notebooks, desktops and servers

Industrial controls

Instrumentation

Peripherals

Serial and parallel ports

JEDEC SOT-23 packing

Molding compound flammability rating: UL 94V-0

Weight: 8.0mg (approximately)

Quantity: 3,000 pieces/reel

Reel size: 7-inch

Lead finish: lead-free
