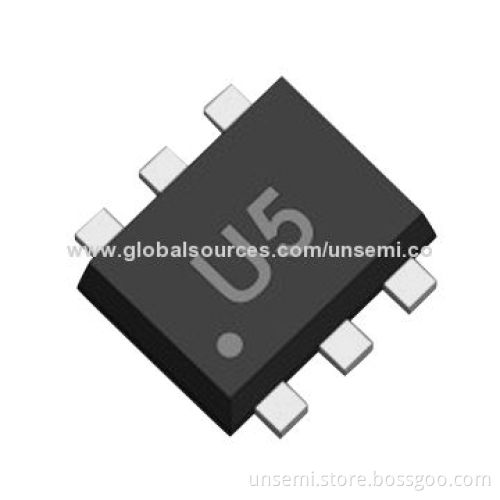

ESD SOT-563 Electrostatic Discharge Protection, 5V Working Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Descriptions:

Designed to protect voltage sensitive components from ESD and transient voltage events
Good clamping capability and low leakage
Fast response time, make these parts ideal for ESD protection on designs where board space is at premium

Features:

Applications:

Mechanical characteristics:

Designed to protect voltage sensitive components from ESD and transient voltage events

Good clamping capability and low leakage

Fast response time, make these parts ideal for ESD protection on designs where board space is at premium

100W peak pulse power per line (TP = 8/20μs)

Protects up to four/five I/O lines

Ultra-small packing (1.6x1.6x0.55mm), requires <2.9mm²of PCB area

Working voltage: 5V

Low leakage current

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC61000-4-4 (EFT) 40A (5/50ηs)

Cellular handsets and accessories

Cordless phones

Personal digital assistants (PDA)

Portable instrumentation

Notebooks and handhelds

Digital cameras

MP3 player

JEDEC SOT-563 packing

Molding compound flammability rating: UL 94V-0

Weight 3.0m (approximate)

Quantity: 3000 pieces/reel

Reel size: 7 inches

Lead finish: lead-free
