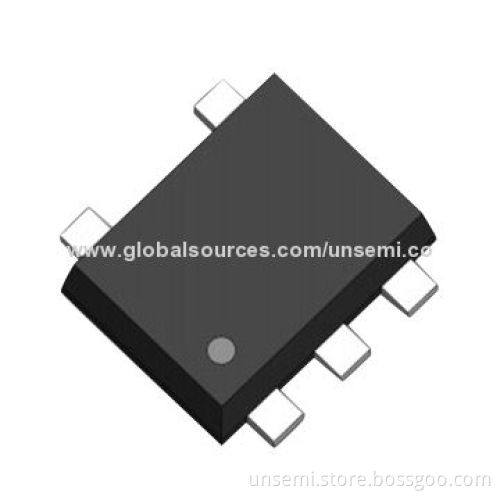

ESD SOT-553 Electrostatic Discharge Protection, Low Leakage Current

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Designed to protect voltage sensitive components from ESD and transient voltage events Nice clamping capability and low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at premium

Features:

20W peak pulse power per line (TP=8/20μs)
Protects five I/O lines
Low clamping voltage
Working voltage: 3.3, 5.0, 12V
Low leakage current
IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
IEC61000-4-5 (lightning) 5A (8/20μs)

Applications:

Cellular handsets and accessories
Cordless phones
Personal digital assistants (PDA)
Notebooks and handhelds
Portable instrumentation
Peripherals
MP3 players

Mechanical characteristics:

JEDEC SOT-363 packing
Molding compound flammability rating: UL 94V-0
Weight: 7.0mg (approximate)
Quantity per reel: 3,000 pieces
Reel size: 7-inch
Lead finish: lead-free
