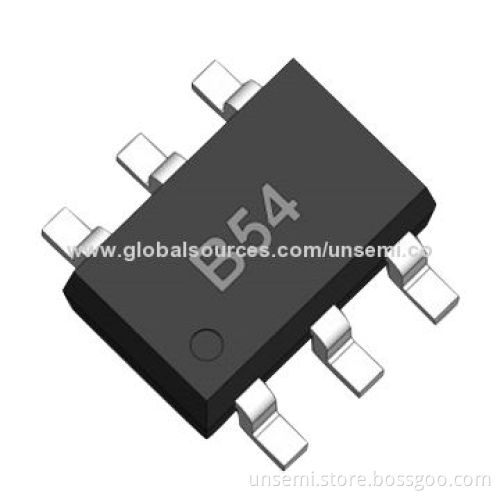

ESD Array, Electrostatic Discharge Protection for consumer electronics, SOT-363

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

ESD05V36T-4L is designed to protect voltage sensitive components from ESD and transient voltage events
Nice clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on design where board space is at premium

Features:

Applications:

Mechanical characteristics:

ESD05V36T-4L is designed to protect voltage sensitive components from ESD and transient voltage events

Nice clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on design where board space is at premium

150W peak pulse power per line (tp=8/20μs)

Protects four I/O lines

Low clamping voltage

Working voltage: 5V

Low leakage current

IEC61000-4-2 (ESD): ±15kV (air) and ±8kV (contact)

IEC61000-4-4 (EFT): 40A (5/50ηs)

IEC61000-4-5 (lightning): 3A (8/20μs)

USB OTG

Video graphic cards

Monitors and flat panel displays

High definition multimedia interface (HDMI)

10/100/1000 Ethernet

IEEE 1394 fire wire ports

SIM ports

ATM interface

SOT-323 packing

Molding compound flammability rating: UL 94V-0

Weight: 8.0mg (approximately)

Quantity: 3,000 pieces/reel

Reel size: 7-inch

Lead finish: lead-free
