ESD SOT-23 Electrostatic Discharge Protection

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Descriptions:

The SM712 is designed to protect voltage sensitive components from ESD and transient voltage events
Excellent clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium

Features:

400W peak pulse power per line (tp=8/20μs)
Protects two 12 to -7V lines
Low clamping voltage
Compliant with the RoHS Directive
IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
IEC61000-4-5 (lightning) 12A (8/20μs)

Applications:

Protection of RS-485 transceivers with extended common-mode range
Security system
Automatic teller machine
HFC system
Networks

Mechanical characteristics:

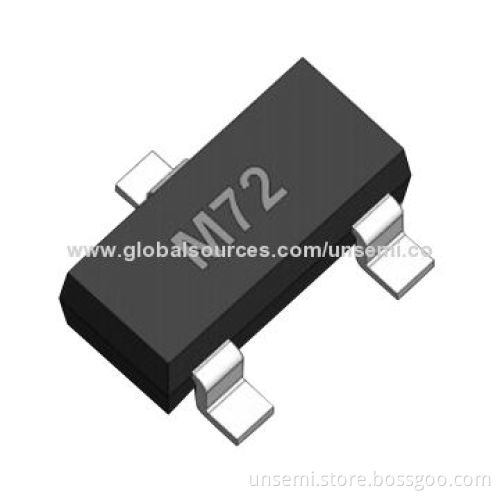

JEDEC SOT-23 package
Molding compound flammability rating: UL 94V-0
Weight: 8.0 milligrams (approximate)
Quantity per reel: 3,000pcs
Reel size: 7 inches
Lead finish: Lead-free

The SM712 is designed to protect voltage sensitive components from ESD and transient voltage events

Excellent clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium

400W peak pulse power per line (tp=8/20μs)

Protects two 12 to -7V lines

Low clamping voltage

Compliant with the RoHS Directive

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC61000-4-4 (EFT) 40A (5/50ηs)

IEC61000-4-5 (lightning) 12A (8/20μs)

Protection of RS-485 transceivers with extended common-mode range

Security system

Automatic teller machine

HFC system

Networks
