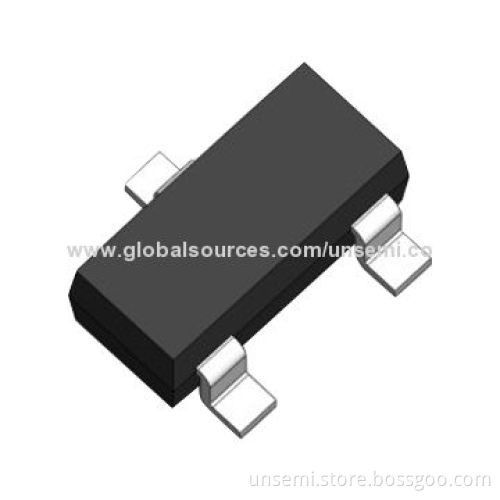

ESD Array, Electrostatic Discharge Protection, SOT-23

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Designed to protect voltage sensitive components from ESD and transient voltage events
Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium

Features:

100W peak pulse power per line (tp=8/20μs)
Protects two birectional I/O lines
Low clamping voltage
Working voltages : 3.3V and 5V
Low leakage current:
- IEC61000-4-2 (ESD): ±15kV (air), ±8kV (contact)
- IEC61000-4-4 (EFT): 40A (5/50ηs)

Applications:

Cellphone handsets and accessories
Microprocessor based equipment
Industrial controls
Notebooks, desktops and servers
Set-top box
Peripherals

Mechanical characteristics:

JEDEC SOT-23 package
Molding compound flammability rating: UL 94V-0
Weight: 8.0mg (approximate)
Quantity per reel: 3,000pcs
Reel size: 7 inches
Lead finish: lead-free
