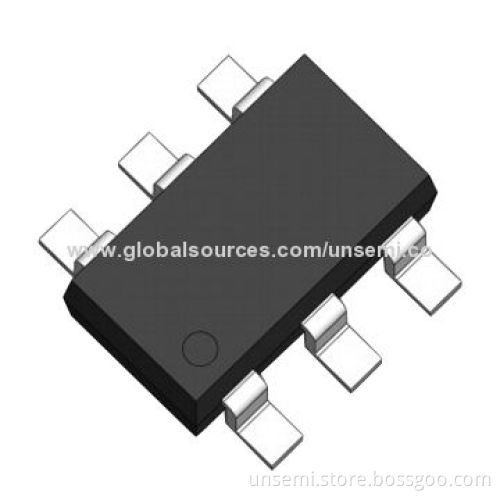

ESD Suppressors, Electrostatic Discharge Protection for Consumer Electronics, SOT-26New

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Designed to protect voltage sensitive components from ESD and transient voltage events
Nice clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at premium

Features:

Applications:

Mechanical characteristics:

Designed to protect voltage sensitive components from ESD and transient voltage events

Nice clamping capability, low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at premium

350W peak pulse power/line (tp = 8/20μs)

Protects four I/O lines

Low clamping voltage

Working voltage: 5V

Low leakage current

IEC61000-4-2 (ESD): ±15kV (air) and ±8kV (contact)

IEC61000-4-4 (EFT): 40A (5/50ηs)

IEC61000-4-5 (lightning): 5A (8/20μs)

USB 2.0 power and data line protection

Video graphics cards

Monitors and flat panel displays

Digit video interface (DVI)

10/100/1000 Ethernet

Notebook computers

SIM ports

ATM interfaces

JEDEC SOT-26 package

Molding compound flammability rating: UL 94V-0

Weight 16.0 milligrams (approximately)

Quantity/reel: 3000 pieces

Reel size: 7-inch

Lead finish: lead-free
