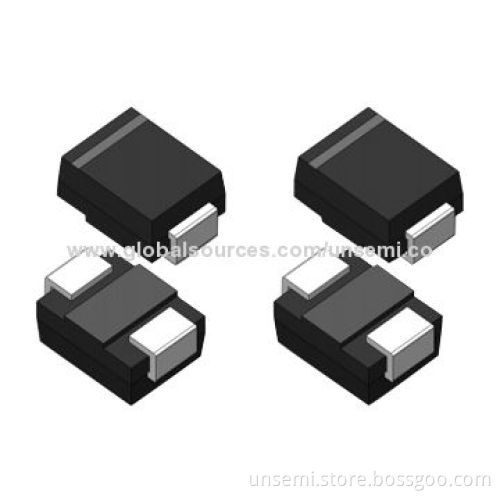

TVS Diode, DO-214AB/SMCNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Description:

Designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

Applications:

Designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Suitable for surface-mounted applications in order to optimize board space

Low leakage

Uni and bidirectional unit

Glass passivate junction

Low inductance

Nice clamping capability

1500W peak power capability at 10 x 1000µs waveform

Repetition rate (duty cycle): 0.01%

Fast response time: typically less than 1.0ps from 0V to VBR (minimum)

Typical IR less than 5μA above 12V

High temperature soldering: 260°C/40 seconds at terminals

Typical maximum temperature coefficient ΔVBR = 0.1% x VBR at 25°C x ΔT

Plastic package has underwriters laboratory flammability 94V-0

Matte tin lead-free plating

Halogen-free

RoHS Directive-compliant

Typical failure mode is short from over-specified voltage or current

Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

IEC 61000-4-2 (ESD): 15 (air) and 8kV (contact)

ESD protection of data lines in accordance with IEC 61000-4-2 (IEC 801-2)

EFT protection of data lines in accordance with IEC 61000-4-4 (IEC 801-4)

Ideal for protection of I/O interfaces, VCC bus and other vulnerable circuits

Used in telecom, computer, industrial and consumer electronic applications
