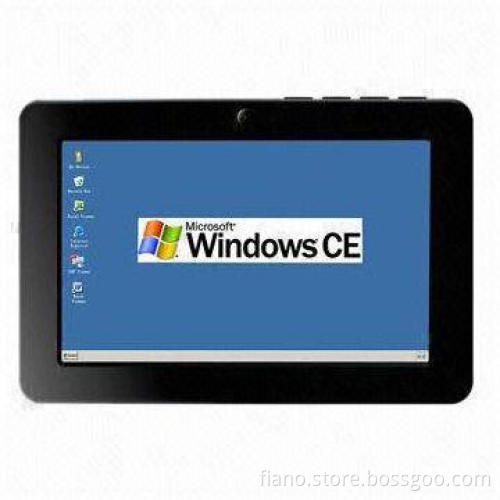

7-inch Microsoft's Windows CE Embedded System/All-in-one PC with VESA Mounting, 190 x 125 x 27mm
  • 7-inch Microsoft's Windows CE Embedded System/All-in-one PC with VESA Mounting, 190 x 125 x 27mm
  • 7-inch Microsoft's Windows CE Embedded System/All-in-one PC with VESA Mounting, 190 x 125 x 27mm
7-inch Microsoft's Windows CE Embedded System/All-in-one PC with VESA Mounting, 190 x 125 x 27mm
7-inch Microsoft's Windows CE Embedded System/All-in-one PC with VESA Mounting, 190 x 125 x 27mm

7-inch Microsoft's Windows CE Embedded System/All-in-one PC with VESA Mounting, 190 x 125 x 27mm

Get Latest Price
Payment Type:
Western Union, PayPal, T/T, MoneyGram or Cash
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Western Union, PayPal, T/T, MoneyGram or Cash
Product Description
Product Description
  • LCD parameters:
    • 7-inch diagonal TFT-LCD
    • Resolution: 800 x (RGB) x 480 = 1,152,000 dots
    • Aspect ratio: 16:9
    • Contrast ratio: 500:1
    • LCD brightness: 300cd/m²
    • Viewing angle: 70/70°(L/R), 50/70°(U/D)
    • Operating temperature: -10 to 50°C
    • Storage temperature: -20 to 60°C
  • Specifications:
    • Freescale ARM1136JF-S i.MX31L processor running up to 532MHz
    • Low-power mobile DDR SDRAM memory 128MB
    • NAND flash memory: 1GB
    • Built-in 7-inch WVGA LCD screen supports up to 800 x 480 x 18-bit/pixel
    • Integrated 4-wire resistive touch screen
    • 10/100Base-T Ethernet
    • 2.0-megapixel CMOS sensor interface
    • Wi-Fi 802.11g/b for wireless Internet access
    • UART interface (RS232) x 2
    • SD/SDHC card supports (up to 32GB)
    • USB2.0 high-speed host interface
    • USB2.0 high-speed on-the-go device interface
    • Power management, 5-hour Li-poly battery (2,200mAh, 7.4V) with charging circuit
    • Audio supported: headphones/line-in/microphone/stereo speaker
    • GPS interface: UART GPS module (option)
    • OS: Microsoft's Windows CE 6.0
    • Video supported: MPEG4/H.264 encoding/decoding VGA 30fps
    • Built-in stereo speakers 2W x 2
    • 12V DC input power supply
    • Power consumption: 6W
    • Buttons: power, menu, volume up, volume down and reset
    • Dimensions: 190 x 125 x 27mm
    • Weight: 0.5kg
    • Multiple-mounting compatibility:
      • VESA 75mm standard wall mount bracket
      • In-vehicle cradle
  • Target applications:
    • Automotive media center, mathematics and navigation
    • Ultra mobile PCs
    • Personal media players
    • VoIP and video phones
    • Home automation and media centers
    • Order management systems
    • E-education devices
    • Advertising digital signature
  • Accessories:
    • AC/DC adapter
    • COM port adapter cable
    • OTG to USB cable
    • VESA mounting board (including full set of screws, nuts and spacers)
    • Stylus pen: 1 piece
  • 7-inch diagonal TFT-LCD
  • Resolution: 800 x (RGB) x 480 = 1,152,000 dots
  • Aspect ratio: 16:9
  • Contrast ratio: 500:1
  • LCD brightness: 300cd/m²
  • Viewing angle: 70/70°(L/R), 50/70°(U/D)
  • Operating temperature: -10 to 50°C
  • Storage temperature: -20 to 60°C
  • Freescale ARM1136JF-S i.MX31L processor running up to 532MHz
  • Low-power mobile DDR SDRAM memory 128MB
  • NAND flash memory: 1GB
  • Built-in 7-inch WVGA LCD screen supports up to 800 x 480 x 18-bit/pixel
  • Integrated 4-wire resistive touch screen
  • 10/100Base-T Ethernet
  • 2.0-megapixel CMOS sensor interface
  • Wi-Fi 802.11g/b for wireless Internet access
  • UART interface (RS232) x 2
  • SD/SDHC card supports (up to 32GB)
  • USB2.0 high-speed host interface
  • USB2.0 high-speed on-the-go device interface
  • Power management, 5-hour Li-poly battery (2,200mAh, 7.4V) with charging circuit
  • Audio supported: headphones/line-in/microphone/stereo speaker
  • GPS interface: UART GPS module (option)
  • OS: Microsoft's Windows CE 6.0
  • Video supported: MPEG4/H.264 encoding/decoding VGA 30fps
  • Built-in stereo speakers 2W x 2
  • 12V DC input power supply
  • Power consumption: 6W
  • Buttons: power, menu, volume up, volume down and reset
  • Dimensions: 190 x 125 x 27mm
  • Weight: 0.5kg
  • Multiple-mounting compatibility:
    • VESA 75mm standard wall mount bracket
    • In-vehicle cradle
  • VESA 75mm standard wall mount bracket
  • In-vehicle cradle
  • Automotive media center, mathematics and navigation
  • Ultra mobile PCs
  • Personal media players
  • VoIP and video phones
  • Home automation and media centers
  • Order management systems
  • E-education devices
  • Advertising digital signature
  • AC/DC adapter
  • COM port adapter cable
  • OTG to USB cable
  • VESA mounting board (including full set of screws, nuts and spacers)
  • Stylus pen: 1 piece
