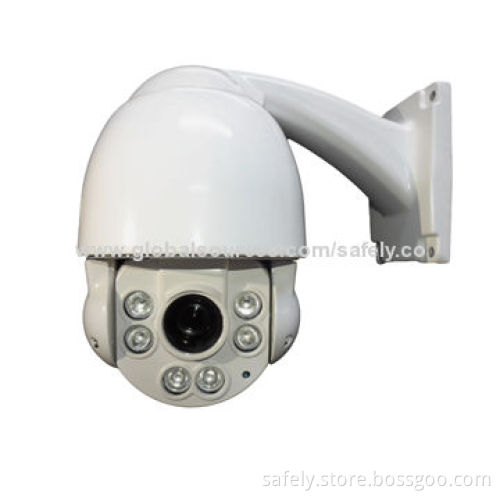

Speed dome PTZ CCTV camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Image sensor: 1/4-inch CCD

Signal model: PAL/NTSC

Horizontal resolution: 540TVL

Effective pixel:

Minimum illumination: 0 lux, color to B/W, with IR-cut function

S/N radio: ≥50dB (enhanced)

Backlight compensation: on/off

White balance: auto

Electronic shutter: 1/50-1/12,000 seconds

Focus length: 3.8-38.0mm

Optical focus: 10X

Focus: auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function

Presets: 256

Patrol track: 4 groups, each can record 200 actions

Cruise track: 8 groups, every group have 30 presets can join cruise, can setting the presets' residence time

Other scan: 4 groups, supports horizontal scan, deuce area scan, scan random

Rotation range:

Rotation speed (horizontal and vertical): minimum of 0.01°, maximum of 200°/S

Communications: RS-485, PELCO D and PELCO P

OSD: whole screen Chinese/English menu

Temperature control: built-in

IR distance: 30m

Power supply: DC 12V/3A

Material: aluminum shell

Working environment condition: -20-50°C (select temperature control accessories), <95%RH

PAL: 752x582

NTSC: 768x494

Horizontal: 360° unlimited rotation

Vertical: 90°, auto reversal
