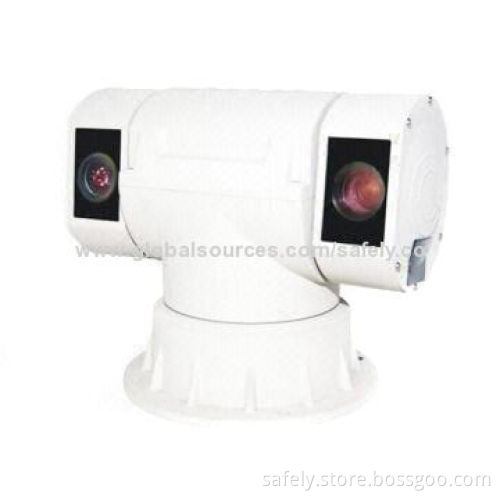

Intelligent Police PTZ Camera with 400m IR

Intelligent Police PTZ Camera with 400m IR

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

400m IR laser night vision intelligent PTZ is a high-end intelligent monitoring product, integrated of optical, mechanical, electrical and images

Adopts self-developed 1/3" CCD 650 TVL/720P/1080P digital automatic high-speed focusing module

Miniaturization, non-spherical, high multiples electrical zoom lens series (covering 600,000 Pixels, 1.3 million pixels)

Laser synchronous zoom filling light technology

Long distance low consumption 400M super homogenization IR laser source technology

High-precision stepper motion technology

Laser device protect technology

Model No SDR-TeF89-360-400

Image sensor 1/3" Sony CCD

Signal models: PAL/NTSC

Horizontal resolutions: 650TVL

Effective pixel PAL: 976(H)*582(V) NTSC, 976(H)*494(V)

Minimum illumination: 0LUX

Color to B/W, IR sensor, IR-CUT

S/N radio: ≥60dB (enhanced)

Backlight compensation: on/off/strong light optimizer

White balance auto/manual IRIS auto/manual

Electronic shutter:

PAL: 1/50 - 1/10,000s
NTSC: 1/60 - 1/12,000s

Focus length: 4.8-105.6mm

Optical focus: 22X

Auto/manual, take high-performance DSP to realize complete

digital and ultra-high speed focus function

Presets 256:

Pattern track 4 groups, each can record 200 actions
Tour track every group have 16 presets can join cruise, can setting the
presets' residence time

Other scan support horizontal scan, deuce area scan, scan random

Rotation range horizontal 360° unlimited rotation, vertical 180°, auto reversal

Rotation speed

Horizontal: 240°/s
Vertical: 160°/s

Communications: RS-485, PELCO D, PELCO P

OSD

Full-screen Chinese/English menu

Special function: AWB, WDR, MASK, DNR, strong light inhibition

Temperature: built-in

Laser lamp distance: 400m, synchronized camera angles adjust the laser angle: 2° to 60° at night

Power supply: DC 12V/4A

Mater aluminum shell, waterproof IP66

Work environments: -20º to +50º C (select temperature control accessories), less than 95%RH

PAL: 1/50 - 1/10,000s

NTSC: 1/60 - 1/12,000s

Pattern track 4 groups, each can record 200 actions

Tour track every group have 16 presets can join cruise, can setting the

presets' residence time

Horizontal: 240°/s

Vertical: 160°/s
