IPS Mode Wide Viewing Angle and High Contrast TFT LCD Modules, 43.2 x 57.45mm Active Area

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash in Advance (CID

Product Description

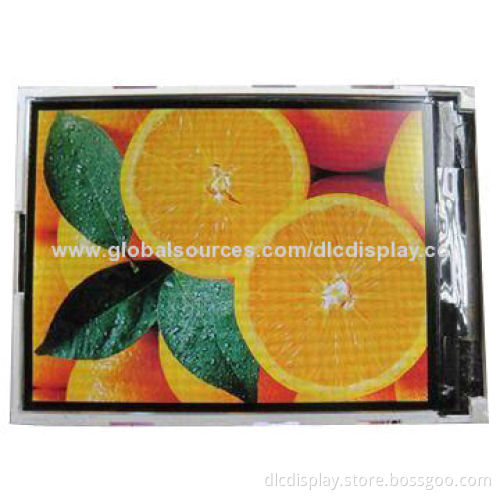

Data sheet is to introduce specification of DLC0283FZG-1 active matrix TFT module composed of color TFT LCD panel, driver ICs, FPC and backlight unit

Size: 2.83-inch

Resolution (RGB): 240 x 320 pixels

Interface: CPU

Technology type: a-Si

Pixel pitch: 0.18 x 0.18mm

Pixel configuration (RGB): vertical stripe

Outline dimensions: 50.0 x 69.2 x 2.3mm

Active area: 43.2 x 57.45mm

Display mode: transmissive

Normally black

Backlight type: LED

Driver IC ILI9341

LDD TFT: low-temperature range

TFT display: high contrast

TFT LCD: transflective

Industrial grade

Wide temperature range

Wide viewing angle
