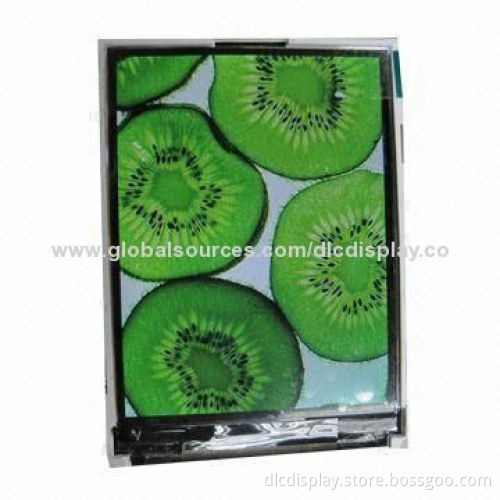

2.8-inch Active Matrix TFT LCD Display Module

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash in Advance (CID

Product Description

Size: 2.8 inches

Resolution: 240 (RGB) x 400 pixels

Interface: 8-bit parallel CPU

Technology type: a-Si TFT

Pixel configuration: RGB vertical stripe

Outline dimensions (W x H x D):43.00 x 72.30 x 2.10mm

Active area: 36.72 x 61.20mm

Display mode: transmission

Normally white

Backlight type: LED

Driver IC: HX8352B

Test item condition, judgment criteria:

High temperature operation range: Ts = +70°C, 120 hours (per table in below)
Low temperature operation range: Ta = -20°C, 120 hours (per table in below)
High temperature storage range: Ta = +80°C, 120 hours (per table in below)
Low temperature storage range: Ta = -30°C, 120 hours (per table in below)
High temperature and high humidity storage: Ta = +60°C, 90% RH, 120 hours (per table in below) (polarizer discoloration is excluded)
Thermal shock (non-operation) range: -20°C, 30 minutes to +70°C, 30 minutes
Change time: 5 minutes, 10 cycles per table in below

High temperature operation range: Ts = +70°C, 120 hours (per table in below)

Low temperature operation range: Ta = -20°C, 120 hours (per table in below)

High temperature storage range: Ta = +80°C, 120 hours (per table in below)

Low temperature storage range: Ta = -30°C, 120 hours (per table in below)

High temperature and high humidity storage: Ta = +60°C, 90% RH, 120 hours (per table in below) (polarizer discoloration is excluded)

Thermal shock (non-operation) range: -20°C, 30 minutes to +70°C, 30 minutes

Change time: 5 minutes, 10 cycles per table in below
