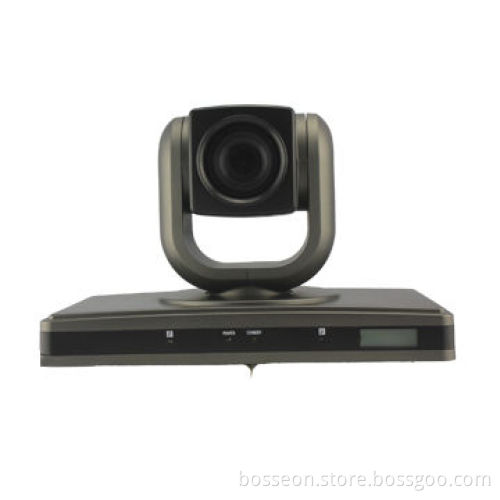

Made in China, 2014 Year New Supporting Control Protocol of VISCA Pelco-D Auto Tracking Camera
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
Product Description
Product Description
- Image sensor: 1/2.8" type exmor CMOS
- Effective pix: 2 megapixel
- Minimum illumination: 0.1 Lux at F1.6
- White balance: auto/manual
- Gain control: auto/manual
- Backlight compensation: on/off
- Shutter speed: 1/1-1/10,000S
- S/N ratio: >50dB
- Lens: focus f=4.7-90mm
- Iris: auto/manual
- Lens: 20 optical
- Horizontal viewing angle: 70.96°(W)-4°(T)
- Video output: HD-SDI CVBS DVI-I
- Signal system: 1080P60, 1080P50, 1080P30, 1080P25,
720P60, 720P50, 720P30, 720P25, PAL/NTSC - Control terminal: EIA/RS232C, EIA/RS485 (Bi-directional)
- Control protocol: VISCA, Pelco-D
- Patrol line: 4 cruise sequence
- Preset position: 64 preset positions
- Pan movement speed: 1-200°/second
- Tilt movement speed: 1-150°/second
- Pan movement range: Pan: 0-355°
- Tilt movement range: up: 45°, down: 45°
- Boundary scanning: 0-355° (programmable)
- Remote controller: IR wireless remote controller P/T/Z
- Power supply range: DC 12V, 2A
- Work temperatures: 0-50°C
- Humidity range: 0-95% RH
- L x W x H: 250mmx140mmx154mm
- Weight: 1290g
- Private tooling design high definition PTZ camera
- Fast and smooth video handling
- Power on-off switch
- Work and standby LED indicator
- Speed match
- Auto/manual focus/brightness/WB
- RS-232C/VISCA protocol
- Lens/dome OSD
- Boundary scanning
- Standby and wakeup status
- Swap video format
- HD-SDI CVBS DVI-I video output
- Desktop
- Ceiling mount
- Standard tripod accessory
720P60, 720P50, 720P30, 720P25, PAL/NTSC
