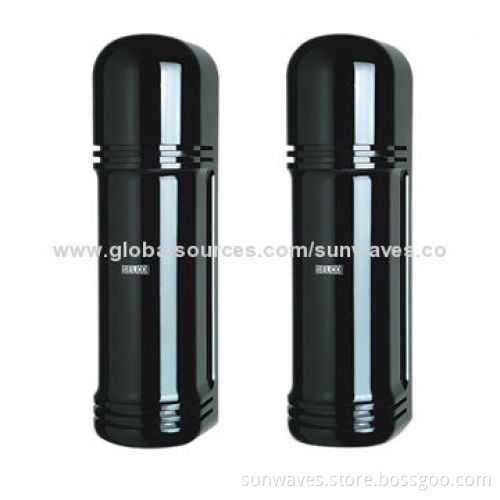

Quad Photoelectric Beam Sensor with Selectable Frequency and Longer Distance Protection

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T 10 Days in Advance

Product Description

Main features:

Remarkable stability and international quality
Select high-performance infrared transmit/receive geminate transistors
New parasitic light wave filtering face-piece, effectively filter out parasitic light interference
The optical radio axis can be adjusted all-round, with fine-tuning knob
Collimator with high-precision configuration, improve the calibration rate of the optical axis
LED status equipment, easy to install and detect
Continuous adjustable response time for alarm
Used in longer distance protection

Parameters:

Model No: SBQ-75L/SBQ-100L/SBQ-150L/SBQ-200L/SBQ-250L
Protection range: 75m/100m/150m/200m/250m
Distance allowance: 1,000m/1,400m/2,100m/2,800m/3,500m
Detection system: alarm when 4 beams cut simultaneously
Response time: 35-700ms
Operating voltages: DC 10.5-28V, (12V recommended)
Current consumption: max 65mA, 70mA, 90mA, 95mA, 100mA
Optical axis:
- Horizontal adjust:180° (±90°)
- Vertical adjust: 24° (±12°)
Alarm output: relay contact output 1C, NC/NO, contact rating AC, DC 30V, 0.5A max
Tamper output: output 1B, contact rating DC 30V 0.5A max
Collimator: view finder
Operation temperatures: -25ºC - +55ºC, RH under 95%
Output dimensions: 355(H) x 99(W) x 104mm (D)
Weight:
- Transmitter: 960g
- Receiver: 990g
