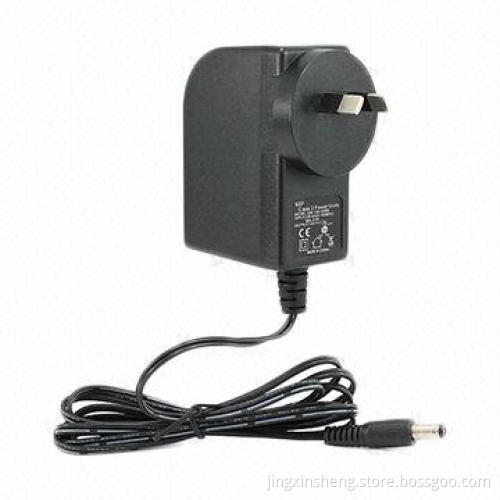

AC Power Adapter, Black Color with 1.3A Output Current and 14.5V Output Voltage
  • AC Power Adapter, Black Color with 1.3A Output Current and 14.5V Output Voltage
  • AC Power Adapter, Black Color with 1.3A Output Current and 14.5V Output Voltage
AC Power Adapter, Black Color with 1.3A Output Current and 14.5V Output Voltage
AC Power Adapter, Black Color with 1.3A Output Current and 14.5V Output Voltage

AC Power Adapter, Black Color with 1.3A Output Current and 14.5V Output Voltage

Get Latest Price
Payment Type:
T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or PayPal
Product Description
Product Description
  • Features:
    • Input range:
      • Voltage: 100 to 240V AC (full range), 50/60Hz
      • Current (RMS): 0.75 at 90V AC, 0.35A at 264V AC (maximum)
    • Output:
      • Voltage range: 5 to 24V DC output
      • Voltage regulation: ±5% at constant voltage mode
      • Current range: 1.0 to 4.0A
      • Maximum power (Po): 24W
    • Protection: over-current/voltage and short-circuit
    • Energy-saving
    • CEC, DOE, MEPS efficiency, level-V and ErP stage 2
    • Certificates:
      • RoHS, PAHs and REACH
      • Safety and EMC
      • UL/cUL, GS, BS1363, SAA, BSMI, FCC, CE, C-Tick
    • Operating temperatures: 0 to 40°C ambient
    • Storage temperatures: -20 to 80°C
    • MTBF: >50,000 hours at 80% loading and 25°C ambient temperature
    • Weight: about 120g
    • Dimensions:
      • UL: 76.8 x 48 x 31mm
      • CE: 76.8 x 48 x 30mm
      • UK: 76.8 x 50 x 37mm
      • SAA: 76.8 x 54.5 x 39mm
  • Input range:
    • Voltage: 100 to 240V AC (full range), 50/60Hz
    • Current (RMS): 0.75 at 90V AC, 0.35A at 264V AC (maximum)
  • Output:
    • Voltage range: 5 to 24V DC output
    • Voltage regulation: ±5% at constant voltage mode
    • Current range: 1.0 to 4.0A
    • Maximum power (Po): 24W
  • Protection: over-current/voltage and short-circuit
  • Energy-saving
  • CEC, DOE, MEPS efficiency, level-V and ErP stage 2
  • Certificates:
    • RoHS, PAHs and REACH
    • Safety and EMC
    • UL/cUL, GS, BS1363, SAA, BSMI, FCC, CE, C-Tick
  • Operating temperatures: 0 to 40°C ambient
  • Storage temperatures: -20 to 80°C
  • MTBF: >50,000 hours at 80% loading and 25°C ambient temperature
  • Weight: about 120g
  • Dimensions:
    • UL: 76.8 x 48 x 31mm
    • CE: 76.8 x 48 x 30mm
    • UK: 76.8 x 50 x 37mm
    • SAA: 76.8 x 54.5 x 39mm
  • Voltage: 100 to 240V AC (full range), 50/60Hz
  • Current (RMS): 0.75 at 90V AC, 0.35A at 264V AC (maximum)
  • Voltage range: 5 to 24V DC output
  • Voltage regulation: ±5% at constant voltage mode
  • Current range: 1.0 to 4.0A
  • Maximum power (Po): 24W
  • RoHS, PAHs and REACH
  • Safety and EMC
  • UL/cUL, GS, BS1363, SAA, BSMI, FCC, CE, C-Tick
  • UL: 76.8 x 48 x 31mm
  • CE: 76.8 x 48 x 30mm
  • UK: 76.8 x 50 x 37mm
  • SAA: 76.8 x 54.5 x 39mm
