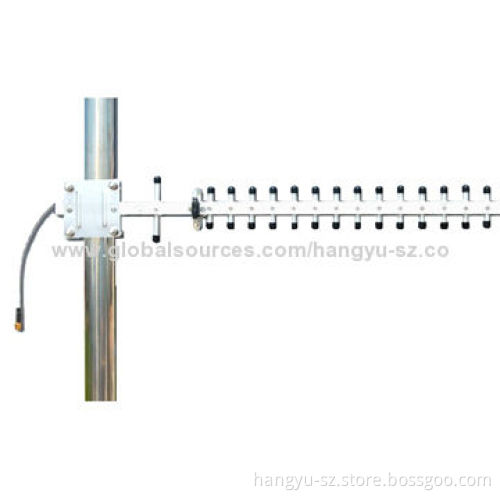

2.4GHz Yagi Antenna with 83MHz Bandwidth, 2,400 to 2,483MHz Frequency Range
  • 2.4GHz Yagi Antenna with 83MHz Bandwidth, 2,400 to 2,483MHz Frequency Range
2.4GHz Yagi Antenna with 83MHz Bandwidth, 2,400 to 2,483MHz Frequency Range

2.4GHz Yagi Antenna with 83MHz Bandwidth, 2,400 to 2,483MHz Frequency Range

Get Latest Price
Payment Type:
T/T, L/C at Sight, PayPal and Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C at Sight, PayPal and Western Union
Product Description
Product Description
  • Specifications:
    • Applied to 2.4GHz WLAN system and ISM frequency with wireless bridge
    • Electrical:
      • Frequency range: 2,400 to 2,483MHz
      • Bandwidth: 83MHz
      • Gain: 16dBi
      • Vertical beam-width: 24°
      • Horizontal beam width: 26°
      • Front-to-back ratio: ≥30dBi
      • VSWR: ≤1.5
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Max power: 50W
      • Connector: RPSMA-J
    • Mechanical:
      • Cable length: 0.5m
      • Antenna dimensions: 610 x 90mm
      • Weight: 270g
      • Installations: Φ40 to 50cm
  • Applied to 2.4GHz WLAN system and ISM frequency with wireless bridge
  • Electrical:
    • Frequency range: 2,400 to 2,483MHz
    • Bandwidth: 83MHz
    • Gain: 16dBi
    • Vertical beam-width: 24°
    • Horizontal beam width: 26°
    • Front-to-back ratio: ≥30dBi
    • VSWR: ≤1.5
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Max power: 50W
    • Connector: RPSMA-J
  • Mechanical:
    • Cable length: 0.5m
    • Antenna dimensions: 610 x 90mm
    • Weight: 270g
    • Installations: Φ40 to 50cm
  • Frequency range: 2,400 to 2,483MHz
  • Bandwidth: 83MHz
  • Gain: 16dBi
  • Vertical beam-width: 24°
  • Horizontal beam width: 26°
  • Front-to-back ratio: ≥30dBi
  • VSWR: ≤1.5
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Max power: 50W
  • Connector: RPSMA-J
  • Cable length: 0.5m
  • Antenna dimensions: 610 x 90mm
  • Weight: 270g
  • Installations: Φ40 to 50cm
