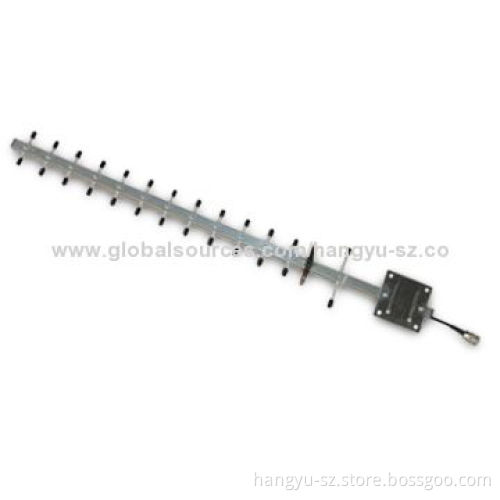

Yagi Antenna, 14dBi Gain, 1,710 to 2,170MHz Frequency Range and N Male Connector
  • Yagi Antenna, 14dBi Gain, 1,710 to 2,170MHz Frequency Range and N Male Connector
  • Yagi Antenna, 14dBi Gain, 1,710 to 2,170MHz Frequency Range and N Male Connector
Yagi Antenna, 14dBi Gain, 1,710 to 2,170MHz Frequency Range and N Male Connector
Yagi Antenna, 14dBi Gain, 1,710 to 2,170MHz Frequency Range and N Male Connector

Yagi Antenna, 14dBi Gain, 1,710 to 2,170MHz Frequency Range and N Male Connector

Get Latest Price
Payment Type:
T/T, PayPal, Western Union or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union or L/C at Sight
Product Description
Product Description
  • Electrical data:
    • Frequency range: 1,710 to 2,170MHz
    • VSWR: 1.5
    • Gain: 14dBi
    • Input impedance: 50
    • Beam angle: 31 degrees
    • F/B ratio: more than 17dB
    • Maximum power: 150W
    • Polarization: H or V
    • Connector type: N female
    • Lighting protection: DC ground
  • Mechanical data:
    • Number of elements: 14
    • Rated wind velocity: 210km/hour
    • Length: 690mm
    • Diameter of installation poles: 38 to 52mm
    • Weight: 0.34kg
  • Frequency range: 1,710 to 2,170MHz
  • VSWR: 1.5
  • Gain: 14dBi
  • Input impedance: 50
  • Beam angle: 31 degrees
  • F/B ratio: more than 17dB
  • Maximum power: 150W
  • Polarization: H or V
  • Connector type: N female
  • Lighting protection: DC ground
  • Number of elements: 14
  • Rated wind velocity: 210km/hour
  • Length: 690mm
  • Diameter of installation poles: 38 to 52mm
  • Weight: 0.34kg
