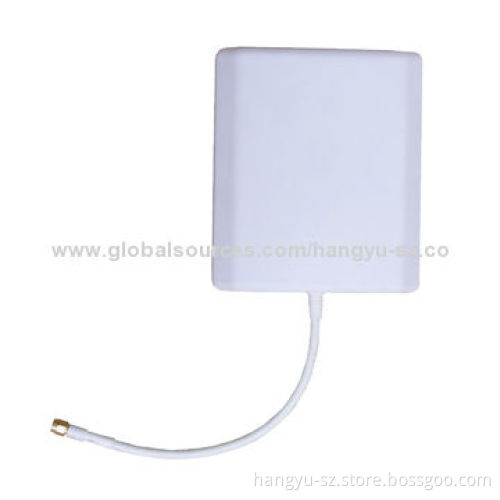

2.3 to 2.7GHz 10dBi Wall Mount Antenna, Low-VSWR, Wide Broadband, Compact Size
  • 2.3 to 2.7GHz 10dBi Wall Mount Antenna, Low-VSWR, Wide Broadband, Compact Size
2.3 to 2.7GHz 10dBi Wall Mount Antenna, Low-VSWR, Wide Broadband, Compact Size

2.3 to 2.7GHz 10dBi Wall Mount Antenna, Low-VSWR, Wide Broadband, Compact Size

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • Description:
    • 2.3 to 2.7GHz wall mount antenna is low-VSWR, wide broadband, compact size and light structure which is easy to install
    • It is applied to 2.4GHz WLAN Wi-Fi, MMDS system and wireless bridge
  • Specifications:
    • Electrical:
      • Frequency range: 2,300 to 2,700MHz
      • Bandwidth: 400MHz
      • Gain: 10dBi
      • VSWR: ≤1.5
      • Beam width:
        • Horizontal: 50 degrees
        • Vertical: 45 degrees
      • F/B ratio: ≥15dB
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: SMA male or customized
    • Mechanical:
      • Antenna dimensions: 140 x 120 x 38mm
      • Weight: 0.35kg
      • Pole dimensions: φ40 to 50mm
      • Temperatures: -40 to 60°C
      • Humidity range: 5 to 95% RH
  • 2.3 to 2.7GHz wall mount antenna is low-VSWR, wide broadband, compact size and light structure which is easy to install
  • It is applied to 2.4GHz WLAN Wi-Fi, MMDS system and wireless bridge
  • Electrical:
    • Frequency range: 2,300 to 2,700MHz
    • Bandwidth: 400MHz
    • Gain: 10dBi
    • VSWR: ≤1.5
    • Beam width:
      • Horizontal: 50 degrees
      • Vertical: 45 degrees
    • F/B ratio: ≥15dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA male or customized
  • Mechanical:
    • Antenna dimensions: 140 x 120 x 38mm
    • Weight: 0.35kg
    • Pole dimensions: φ40 to 50mm
    • Temperatures: -40 to 60°C
    • Humidity range: 5 to 95% RH
  • Frequency range: 2,300 to 2,700MHz
  • Bandwidth: 400MHz
  • Gain: 10dBi
  • VSWR: ≤1.5
  • Beam width:
    • Horizontal: 50 degrees
    • Vertical: 45 degrees
  • F/B ratio: ≥15dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA male or customized
  • Horizontal: 50 degrees
  • Vertical: 45 degrees
  • Antenna dimensions: 140 x 120 x 38mm
  • Weight: 0.35kg
  • Pole dimensions: φ40 to 50mm
  • Temperatures: -40 to 60°C
  • Humidity range: 5 to 95% RH
