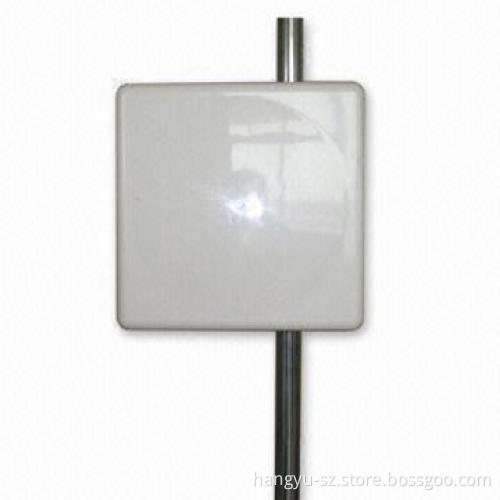

Panel Antenna with 18dBi High-gain, 200MHz Bandwidth and Strong Corrosion Resistance Ability

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Westen Union, L/C at Sight, PayPal

Product Description

Description:

With high-gain, low-VSWR, lightweight, small size, low-profileand strong corrosion resistance ability which is supplied with mastmounting kit
It is applied to 2.5 to 2.7GHz frequency, MMDS system, wirelessbridge and data or image transmission

Electrical specifications:

Mechanical specifications:

With high-gain, low-VSWR, lightweight, small size, low-profileand strong corrosion resistance ability which is supplied with mastmounting kit

It is applied to 2.5 to 2.7GHz frequency, MMDS system, wirelessbridge and data or image transmission

Frequency range: 2,500 to 2,700MHz

Bandwidth: 200MHz

Gain: 18dBi

VSWR: d1.5

Beam-width: 20° (vertical/horizontal)

F/B ratio: e28dB

Polarization: vertical

Maximum power: 50W

Connector: N-K (customized)

Dimensions: 305 x 305 x 25mm

Weight: 1.8kg (including the clamps)

Mounting: 40 to 50$

Temperature: -40 to 60

Working humidity: 5 to 95% RH
