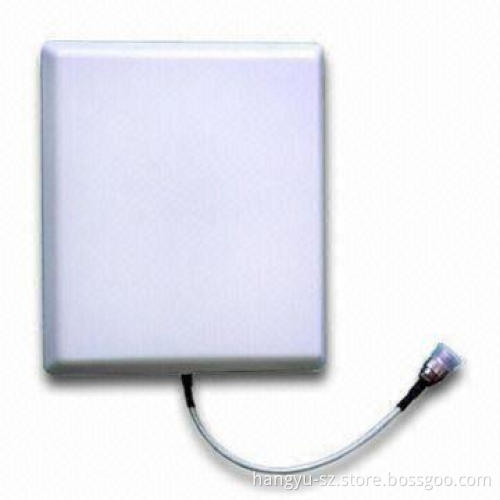

12dBi Wall-mount Antenna with 400MHz Bandwidth and 2300 to 2700MHz Frequency Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, L/C at Sight or PayPal

Product Description

2.3 to 2.7G wall mount antenna with low-VSWR, wide broadband, compact size and light structure which is easy to install

It is applied to 2.4GHz WLAN WiFi system, MMDS system and wireless bridge

Frequency range: 2300 to 2700MHz

Bandwidth: 400MHz

Gain: 12dBi

VSWR: ≤1.5

Horizontal beam width: 55°

Vertical beam width: 32°

F/B ratio: ≥18dB

Nominal impedance: 50Ω

Polarization: vertical

Maximum power: 50W

Connector: N-K or customized

Mechanical specifications:

Antenna dimensions: 210 x 180 x 45mm

Weight: 0.62kg

Mounting: φ40 to 50mm

Temperature: -40 to 60℃

Humidity: 5 to 95%RH
