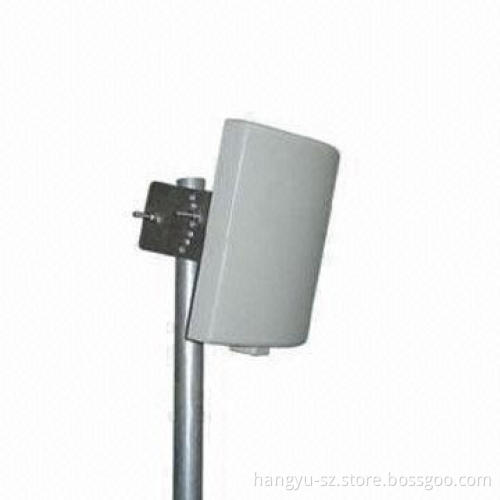

2.4/5.8GHz Dual-band Flat Panel Antenna with High-gain, Low VSWR, Small Size and Lightweight
  • 2.4/5.8GHz Dual-band Flat Panel Antenna with High-gain, Low VSWR, Small Size and Lightweight
2.4/5.8GHz Dual-band Flat Panel Antenna with High-gain, Low VSWR, Small Size and Lightweight

2.4/5.8GHz Dual-band Flat Panel Antenna with High-gain, Low VSWR, Small Size and Lightweight

Get Latest Price
Payment Type:
T/T, Western Union and L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union and L/C at Sight
Product Description
Product Description
  • Specifications:
    • It is supplied with mast mounting kit
    • It is applied to 2.4/5.1/5.5/5.8GHz WLAN system, point to multi-point applications and 5.8GHz UNII/ISM system
    • Electrical:
      • Frequency range: 2,400 to 2,500, 5,150 to 5,850MHz
      • Bandwidth: 100/700MHz
      • Gain: 12/15dBi
      • VSWR: ≤1.5
      • Horizontal beam width: 43/20°
      • Vertical beam width: 46/22°
      • F/B ratio: ≥20dB
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: N female or customized
