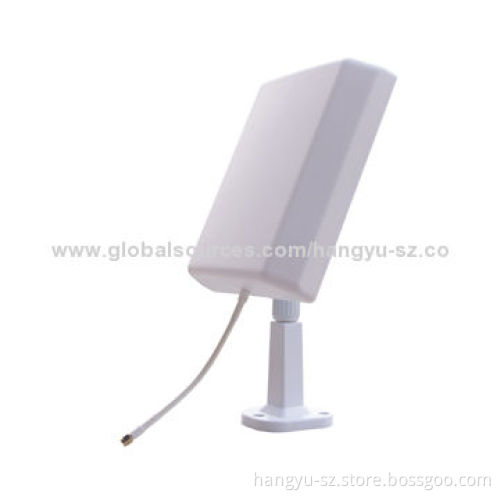

2.3-2.7GHz 12dBi Wall-mounted Antenna with 400MHz Bandwidth, 50W Maximum Power
  • 2.3-2.7GHz 12dBi Wall-mounted Antenna with 400MHz Bandwidth, 50W Maximum Power
2.3-2.7GHz 12dBi Wall-mounted Antenna with 400MHz Bandwidth, 50W Maximum Power

2.3-2.7GHz 12dBi Wall-mounted Antenna with 400MHz Bandwidth, 50W Maximum Power

Get Latest Price
Payment Type:
TT, Westen Union, L/C at Sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Westen Union, L/C at Sight, PayPal
Product Description
Product Description
  • Descriptions:
    • 2.3-2.7GHz is low-VSWR, wide broadband, compact size and light structure which is easy to install
    • It is applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge
  • Specifications:
    • Electrical:
      • Frequency range: 2,300-2,700MHz
      • Bandwidth: 400MHz
      • Gain: 12dBi
      • VSWR: ≤1.5
    • Beam width:
      • Horizontal: 55°
      • Vertical: 32°
      • F/B ratio: ≥23dB
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: SMA male or customized
    • Mechanical:
      • Antenna dimensions: 210 x 180 x 45mm
      • Weight: 0.4kg
      • Pole dimensions range: φ40-50mm
      • Temperatures: -40 to 60
      • Humidity range: 5-95%
  • 2.3-2.7GHz is low-VSWR, wide broadband, compact size and light structure which is easy to install
  • It is applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge
  • Electrical:
    • Frequency range: 2,300-2,700MHz
    • Bandwidth: 400MHz
    • Gain: 12dBi
    • VSWR: ≤1.5
  • Beam width:
    • Horizontal: 55°
    • Vertical: 32°
    • F/B ratio: ≥23dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA male or customized
  • Mechanical:
    • Antenna dimensions: 210 x 180 x 45mm
    • Weight: 0.4kg
    • Pole dimensions range: φ40-50mm
    • Temperatures: -40 to 60
    • Humidity range: 5-95%
  • Frequency range: 2,300-2,700MHz
  • Bandwidth: 400MHz
  • Gain: 12dBi
  • VSWR: ≤1.5
  • Horizontal: 55°
  • Vertical: 32°
  • F/B ratio: ≥23dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA male or customized
  • Antenna dimensions: 210 x 180 x 45mm
  • Weight: 0.4kg
  • Pole dimensions range: φ40-50mm
  • Temperatures: -40 to 60
  • Humidity range: 5-95%
