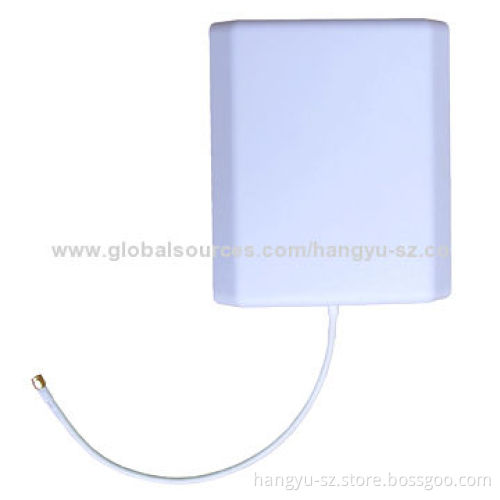

2.3 to 2.7GHz 10dBi Wall-mounted Antenna with Measures 140 x 120 x 38mm
  • 2.3 to 2.7GHz 10dBi Wall-mounted Antenna with Measures 140 x 120 x 38mm
2.3 to 2.7GHz 10dBi Wall-mounted Antenna with Measures 140 x 120 x 38mm

2.3 to 2.7GHz 10dBi Wall-mounted Antenna with Measures 140 x 120 x 38mm

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight, PayPal
Product Description
Product Description
  • Description:
    • Compact size and light structure, which is easy to install
    • It is applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge
  • Specifications:
    • Frequency range: 2,300-2,700MHz
    • Bandwidth: 400MHz
    • Gain: 10dBi
    • VSWR: ≤1.5
    • Beam width:
      • Horizontal: 50°
      • Vertical: 45°
    • F/B ratio: ≥15dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA male or customized
    • Antenna dimensions: 140 x 120 x 38mm
    • Weight: 0.35kg
    • Pole dimensions: φ40 to 50mm
    • Temperatures: -40 to 60°C
    • Humidity range: 5 to 95% RH
  • Compact size and light structure, which is easy to install
  • It is applied to 2.4GHz WLAN Wi-Fi system, MMDS system and wireless bridge
  • Frequency range: 2,300-2,700MHz
  • Bandwidth: 400MHz
  • Gain: 10dBi
  • VSWR: ≤1.5
  • Beam width:
    • Horizontal: 50°
    • Vertical: 45°
  • F/B ratio: ≥15dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA male or customized
  • Antenna dimensions: 140 x 120 x 38mm
  • Weight: 0.35kg
  • Pole dimensions: φ40 to 50mm
  • Temperatures: -40 to 60°C
  • Humidity range: 5 to 95% RH
  • Horizontal: 50°
  • Vertical: 45°
