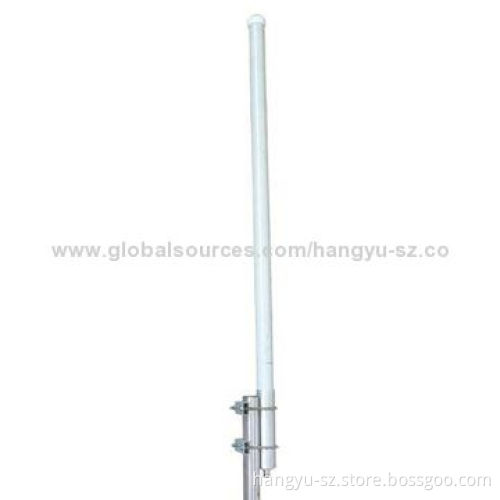

5.8GHz Fiberglass Omnidirectional Antenna with 200MHz Bandwidth and 50W Maximum Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Westen Union, L/C at Sight and PayPal

Product Description

Frequency range: 5,600 to 5,800MHz

Bandwidth: 200MHz

Gain: 12dBi

Beam width:

VSWR: ≤1.5

Electrical down tilt: 0 to 2°

3rd order IMP: <-107dBm

Maximum power: 50W

Nominal impedance: 50Ω

Polarization: vertical

Lightning protection: direct ground

Connector: N-female

Cover for antenna: fiberglass

Radiating element material: copper

Pole installation: φ20 to 30mm

Dimensions: φ26 x 1,450mm

Rated wind velocity: 60m/second

Weight: 0.6kg

Temperatures: -40 to 70°C

Vertical: 7.5°

Horizontal: 360°
