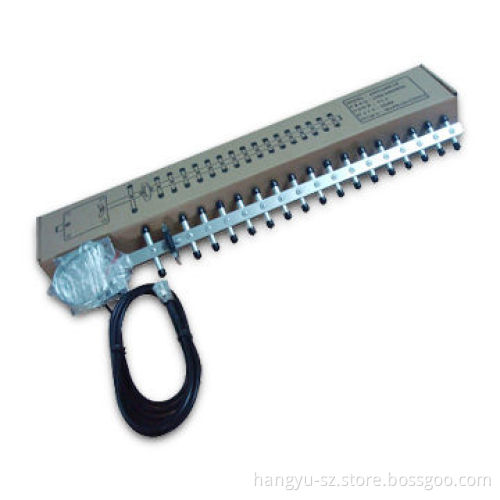

2,400-2,483MHz Yagi Antenna with 18dBi Gain and Strong Signal
  • 2,400-2,483MHz Yagi Antenna with 18dBi Gain and Strong Signal
  • 2,400-2,483MHz Yagi Antenna with 18dBi Gain and Strong Signal
2,400-2,483MHz Yagi Antenna with 18dBi Gain and Strong Signal
2,400-2,483MHz Yagi Antenna with 18dBi Gain and Strong Signal

2,400-2,483MHz Yagi Antenna with 18dBi Gain and Strong Signal

Payment Type:
TT, L/C at Sight, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, L/C at Sight, PayPal, Western Union
Product Description
Product Description
  • Electrical specifications:
    • Frequency range: 2,400 to 2,483MHz
    • Polarization: vertical or horizontal
    • Gain: 18dBi
    • Impedance: 50 Ohms
    • Maximum input power: 100W
    • VSWR: ≤1.5
    • Half-power beam width:
      • E-plane: 42 degrees
      • H-plane: 39 degrees
    • F/B ratio: ≥16dB
  • Mechanical specifications:
    • Connector: RP-SMA
    • Length: 585mm
    • Cable length: 300mm
    • Weight: 261.3g
    • Operating temperature: -30 to 60°C
    • Humidity: 5 to 95% RH
    • Installation way: wall mount
    • Antenna size: 80 x 80 x 585mm
    • Pipe diameter: Φ6mm
  • Frequency range: 2,400 to 2,483MHz
  • Polarization: vertical or horizontal
  • Gain: 18dBi
  • Impedance: 50 Ohms
  • Maximum input power: 100W
  • VSWR: ≤1.5
  • Half-power beam width:
    • E-plane: 42 degrees
    • H-plane: 39 degrees
  • F/B ratio: ≥16dB
  • E-plane: 42 degrees
  • H-plane: 39 degrees
  • Connector: RP-SMA
  • Length: 585mm
  • Cable length: 300mm
  • Weight: 261.3g
  • Operating temperature: -30 to 60°C
  • Humidity: 5 to 95% RH
  • Installation way: wall mount
  • Antenna size: 80 x 80 x 585mm
  • Pipe diameter: Φ6mm
