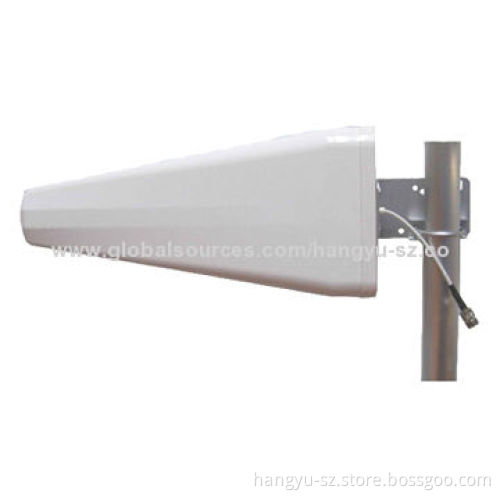

LPDA Antenna with 690-960/1,710-2,700MHz Frequency Range, Applied to Base Stations, Indoor Coverage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C at Sight

Product Description

Descriptions:

Applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN/4G system

Electrical specifications:

Mechanical specifications:

Applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN/4G system

Frequency range: 690-960/1,710-2,700MHz

Bandwidth: 270/990MHz

Gain: 10/11dBi

Vertical beam width: 60/55°

Horizontal beam width: 90/70°

Polarization: ≥19

VSWR: ≤2.0

Nominal impedance: 50Ω

Polarization: vertical

Max. power: 100W

Connector: N-K

Cable: 0.5m

Antenna dimensions: 400 x 265 x 65mm

Weight: 1,000g

Temperatures: -40-60℃

Humidity range: 5-95﹪

Installation: pole φ40-50
