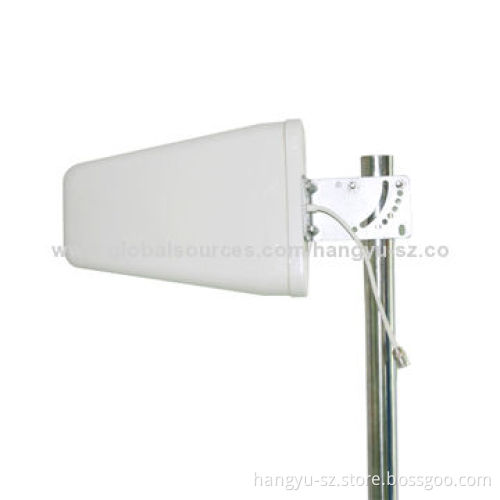

LPDA Antenna, Applied to Base Station, Indoor Coverage System and GSM/CDMA/PCS/3G/WLAN System
  • LPDA Antenna, Applied to Base Station, Indoor Coverage System and GSM/CDMA/PCS/3G/WLAN System
LPDA Antenna, Applied to Base Station, Indoor Coverage System and GSM/CDMA/PCS/3G/WLAN System

LPDA Antenna, Applied to Base Station, Indoor Coverage System and GSM/CDMA/PCS/3G/WLAN System

Get Latest Price
Payment Type:
TT, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, L/C at Sight
Product Description
Product Description
  • Specifications:
    • Electrical data:
      • Frequency range: 806-960/1,710-2,500MHz
      • Bandwidth: 154/790MHz
      • Gain: 7/9dBi
      • Vertical beam: 50/40°
      • Horizontal beam: 65/50°
      • Polarization: ≥18
      • VSWR: ≤1.5
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 100W
      • Connector: N-K
    • Mechanical data:
      • Cable length: 0.5m
      • Antenna dimensions: 295 x 210 x 64mm
      • Weight: 723g
      • Temperature: -40-60°C
      • Humidity range: 5-95%
      • Installation ways: pole, 40-50
    • Description: applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system
  • Electrical data:
    • Frequency range: 806-960/1,710-2,500MHz
    • Bandwidth: 154/790MHz
    • Gain: 7/9dBi
    • Vertical beam: 50/40°
    • Horizontal beam: 65/50°
    • Polarization: ≥18
    • VSWR: ≤1.5
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 100W
    • Connector: N-K
  • Mechanical data:
    • Cable length: 0.5m
    • Antenna dimensions: 295 x 210 x 64mm
    • Weight: 723g
    • Temperature: -40-60°C
    • Humidity range: 5-95%
    • Installation ways: pole, 40-50
  • Description: applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system
  • Frequency range: 806-960/1,710-2,500MHz
  • Bandwidth: 154/790MHz
  • Gain: 7/9dBi
  • Vertical beam: 50/40°
  • Horizontal beam: 65/50°
  • Polarization: ≥18
  • VSWR: ≤1.5
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 100W
  • Connector: N-K
  • Cable length: 0.5m
  • Antenna dimensions: 295 x 210 x 64mm
  • Weight: 723g
  • Temperature: -40-60°C
  • Humidity range: 5-95%
  • Installation ways: pole, 40-50
