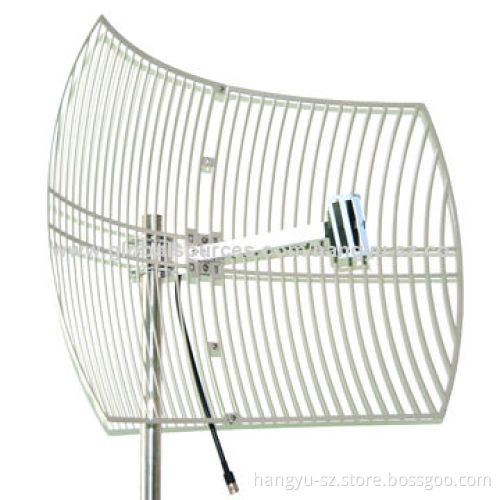

Grid Parabolic Antenna with 22dBi Gain and 1,800 to 2,170MHz Frequencies

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Westen Union, L/C at Sight, PayPal

Product Description

Frequency range: 1800 to 2170MHz

Bandwidth: 370MHz

Gain: 22dBi

Polarization: vertical or horizontal

VSWR:

Mechanical:

Features:

Horizontal beam width: 22

Vertical beam width: 18

F/B ratio: 30dB

Impedance: 50

Maximum power capacity: 100W

Lighting protection: DC ground

Connector: type N-K

Antenna dimensions: 600 x 900mm

Antenna weight: 3.5kg

Pole diameter range: 40 to 50mm

Rated wind velocity: 60m/second

Operating temperatures: -40 to 60°C

Humidity range: 5 to 95% RH

Telecommunication: RPT and WDS

Point to point or point to multiple points signal transmission

High-gain and low VSWR

Good anti-corrosion performance

Strong environmental adaptation

Anti-aging cover
