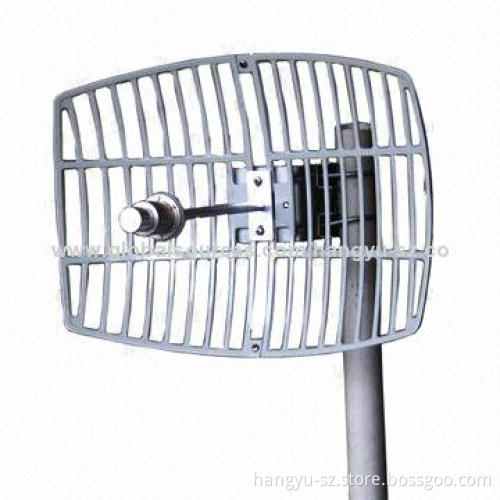

3.5GHz 19dBi Parabolic Antenna, Used for Long Distance Communication of WiMAX System
  • 3.5GHz 19dBi Parabolic Antenna, Used for Long Distance Communication of WiMAX System
3.5GHz 19dBi Parabolic Antenna, Used for Long Distance Communication of WiMAX System

3.5GHz 19dBi Parabolic Antenna, Used for Long Distance Communication of WiMAX System

Get Latest Price
Payment Type:
T/T, PayPal, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union, L/C at Sight
Product Description
Product Description
  • Electrical specifications:
    • Frequency range: 3,300-3,800MHz
    • Bandwidth: 500MHz
    • Gain: 19dBi
    • VSWR: ≤1.5
    • Horizontal beam width: 120°
    • Vertical beam width: 7°
    • Front-to-back ratio: ≥25dB
    • Impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 100W
    • Connector: N female
  • Mechanical specifications:
    • Antenna dimensions: 800 x 128 x 56mm
    • Weight: 2.6kg
    • Pole dimensions: Ф40-75mm
    • Temperatures: -40 to 70
    • Humidity range: 5-95% RH
  • Frequency range: 3,300-3,800MHz
  • Bandwidth: 500MHz
  • Gain: 19dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 120°
  • Vertical beam width: 7°
  • Front-to-back ratio: ≥25dB
  • Impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 100W
  • Connector: N female
  • Antenna dimensions: 800 x 128 x 56mm
  • Weight: 2.6kg
  • Pole dimensions: Ф40-75mm
  • Temperatures: -40 to 70
  • Humidity range: 5-95% RH
