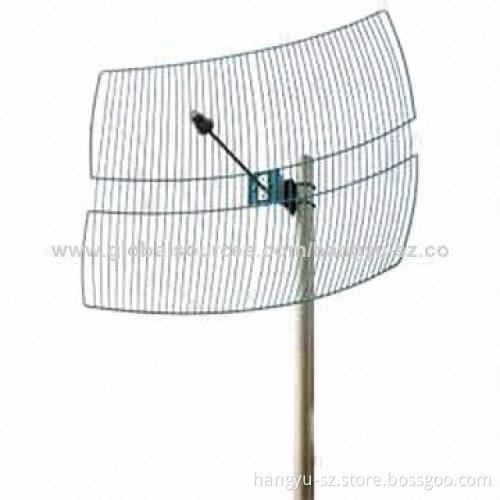

3.5GHz 27dBi Parabolic Antenna, Used for Long Distance Communication of WIMAX System
  • 3.5GHz 27dBi Parabolic Antenna, Used for Long Distance Communication of WIMAX System
3.5GHz 27dBi Parabolic Antenna, Used for Long Distance Communication of WIMAX System

3.5GHz 27dBi Parabolic Antenna, Used for Long Distance Communication of WIMAX System

Get Latest Price
Payment Type:
T/T, PayPal, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union, L/C at Sight
Product Description
Product Description
  • Descriptions:
    • The antenna is low-VSWR, high-gain, light structure and with superior performance which is easy-to-install and can be operated in all weather
  • Specification:
    • Electrical:
      • Frequency range: 3,300-3,800MHz
      • Bandwidth: 500MHz
      • Gain: 27dBi
      • VSWR: ≤1.5
      • Horizontal beam width: 6.5°
      • Vertical beam width: 9.5°
      • F/B ratio: ≥30dB
      • Nominal impedance: 50Ω
      • Polarization: vertical or horizontal
      • Maximum power: 100W
      • Connector: N-female
    • Mechanical:
      • Antenna dimensions: 900 x 600mm
      • Weight: 3.6kg
      • Pole dimension: Ф40-50mm
      • Temperatures: -40 to 60℃
      • Humidity range: 5 - 95%
  • The antenna is low-VSWR, high-gain, light structure and with superior performance which is easy-to-install and can be operated in all weather
  • Electrical:
    • Frequency range: 3,300-3,800MHz
    • Bandwidth: 500MHz
    • Gain: 27dBi
    • VSWR: ≤1.5
    • Horizontal beam width: 6.5°
    • Vertical beam width: 9.5°
    • F/B ratio: ≥30dB
    • Nominal impedance: 50Ω
    • Polarization: vertical or horizontal
    • Maximum power: 100W
    • Connector: N-female
  • Mechanical:
    • Antenna dimensions: 900 x 600mm
    • Weight: 3.6kg
    • Pole dimension: Ф40-50mm
    • Temperatures: -40 to 60℃
    • Humidity range: 5 - 95%
  • Frequency range: 3,300-3,800MHz
  • Bandwidth: 500MHz
  • Gain: 27dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 6.5°
  • Vertical beam width: 9.5°
  • F/B ratio: ≥30dB
  • Nominal impedance: 50Ω
  • Polarization: vertical or horizontal
  • Maximum power: 100W
  • Connector: N-female
  • Antenna dimensions: 900 x 600mm
  • Weight: 3.6kg
  • Pole dimension: Ф40-50mm
  • Temperatures: -40 to 60℃
  • Humidity range: 5 - 95%
