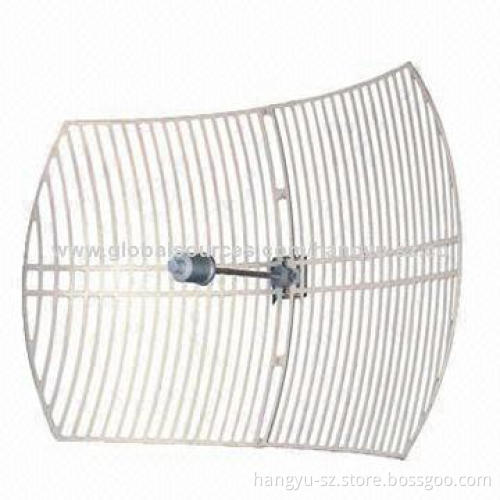

3.5GHz Parabolic Grid Antenna, 27dbi Gain and 3,400 to 3,500MHz Frequency
  • 3.5GHz Parabolic Grid Antenna, 27dbi Gain and 3,400 to 3,500MHz Frequency
3.5GHz Parabolic Grid Antenna, 27dbi Gain and 3,400 to 3,500MHz Frequency

3.5GHz Parabolic Grid Antenna, 27dbi Gain and 3,400 to 3,500MHz Frequency

Get Latest Price
Payment Type:
T/T, PayPal, Western Union or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union or L/C at Sight
Product Description
Product Description
  • Frequency range: 3,400 to 3,600MHz
  • Gain 27dBi
  • F/B ratio: ≥35dB
  • VSWR: ≤1.4
  • Nominal impedance: 50Ω
  • Polarization: vertical or horizontal
  • Cross polarization: ≥27
  • Maximum power: 100W
  • Mechanical tilt: ±10°
  • Connector: N female
  • Antenna dimensions: 600 x 900mm
  • Antenna material: die-cast aluminum
  • Pole sizes: φ40 to 50mm
  • Mounting kit: stainless steel
  • Weight: 2.1kg
  • Supplied with down-tilt bracket
  • Rated wind velocity: 60m/s
  • Temperatures: -40 to 70°C
