Wall Mount Antenna, applied to base station and indoor coverage system

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Westen Union, L/C at sight

Product Description

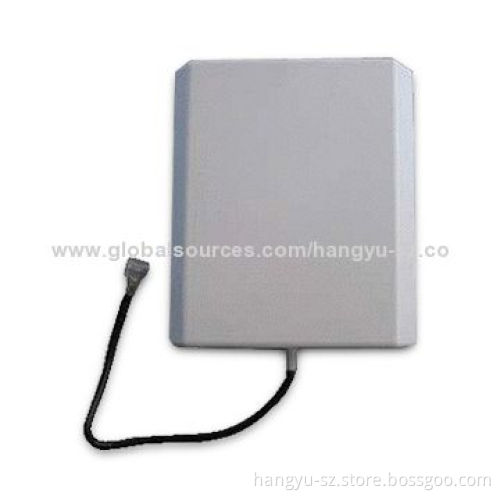

Product name: wall mount antenna

Model: HYA-0825WA

Descriptions: It's applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system.

Electrical specification

Mechanical specification

Frequency range:MHz: 806-960/1710-2500

Bandwidth: MHz: 154/790

Gain:-dBi: 10/11

Vertical beam width: -°: 55/45

Horizontal beam width: -°: 70/60

VSWR: ≤1.5

Nominal impedance-Ω: 50

Polarization: vertical

Max. power:-W 50

Connector: N-K

Cable length:-m: 0.3

Antenna dimension:-mm: 210×180×47

Weight:-g: 415

Temperature: -40 to 60 deg. C

Humidity: 5 to 95%

Installation: wall mounting
