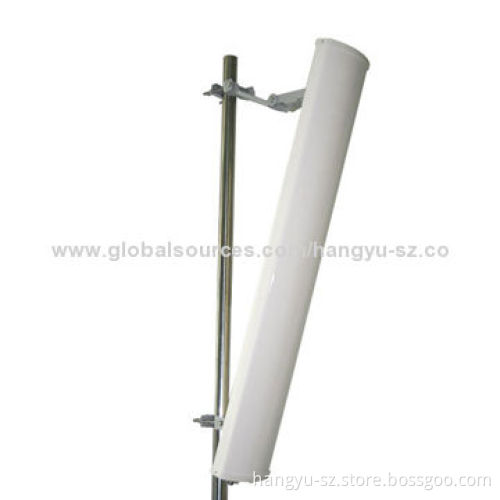

Panel Antenna with 3,300 to 3,800MHz Frequency Range
  • Panel Antenna with 3,300 to 3,800MHz Frequency Range
Panel Antenna with 3,300 to 3,800MHz Frequency Range

Panel Antenna with 3,300 to 3,800MHz Frequency Range

Get Latest Price
Payment Type:
T/T, Westen Union, L/C at Sight and PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Westen Union, L/C at Sight and PayPal
Product Description
Product Description
  • Frequency range: 3,300 to 3,800MHz
  • Bandwidth: 500MHz
  • Gain: 16dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 120 degrees
  • Vertical beam width: 7 degrees
  • Front-to-back ratio: ≥25dB
  • Impedance: 50Ω
  • Polarization: vertical
  • Power: 100W
  • Connector: N female
  • Antenna dimensions: 800 x 128 x 56mm
  • Weight: 2.6kg
  • Pole dimensions: 40 x 75mm
  • Temperature: -40 to +70°C
  • Humidity: 5 to 95% RH
